Customizations in calculator should be lockable

 Post Reply Post Reply
Author
Message
gvellet View Drop Down
Active User
Active User


Joined: 26 Jun 2021
Status: Offline
Points: 46
Post Options Post Options   Thanks (0) Thanks(0)   Quote gvellet Quote  Post ReplyReply Direct Link To This Post Topic: Customizations in calculator should be lockable
    Posted: 14 Apr 2022 at 11:12am
Hi,

When using the calculator, PCB library doc strongly suggests that pin 1 indicator should be added by hand instead of the automatic way. I agree the automatic way is too dumb to be useful, it places the dot right in front of the pad where most likely a via will be placed and obliterate the dot. And also there is no way to move it.

But placing of the pin 1 dot by hand or adding a keepout have a big draw back too. All customizations will be wiped out if I change any dimensions and then click calculate.

There should be a way to tell the software to preserve all customizations.

You might say that an alternative is to transfer the footprint into the footprint designer. But this option has severe limitations, you lose the pin dimensions, the STEP model, the pin outline, and you lose the ability to rebuild footprint for less/nominal/most density level.

All for now,
GV


Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 14 Apr 2022 at 12:22pm
The most important thing to remember about manually inserting polarity marking is to manually add them last.

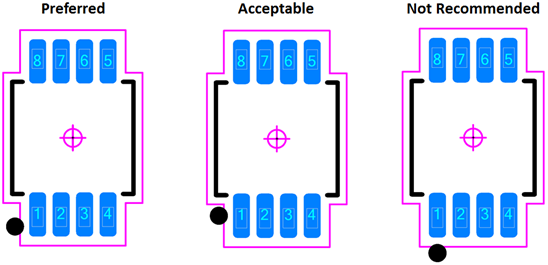

However, you have a good point about putting the automatic silkscreen polarity marking to the left of pin 1 rather than at the end of pin 1.

We've heard this suggestion before.

As a result, by popular demand we're relocating the automatic Pin 1 marking to the left of Pin 1 for all footprints that have a Toe that is larger than the package width.

This will not affect any BTC (Bottom Terminal Components) like Grid Array's, DFNs, Pullback Lead PSON & PQFN, etc.

Thank you for your feedback.

This new feature will be in the next release of V2022.06 pre-release tomorrow or this weekend. We'll let you know.

Stay connected - follow us! X - LinkedIn
Back to Top
gvellet View Drop Down
Active User
Active User


Joined: 26 Jun 2021
Status: Offline
Points: 46
Post Options Post Options   Thanks (0) Thanks(0)   Quote gvellet Quote  Post ReplyReply Direct Link To This Post Posted: 14 Apr 2022 at 3:34pm
Hi Tom,

Having the automatic polarity marker improved is a good thing. Hopefully some control will be given in the drafting tab of the part to offset the marker and to select among the 9 different shapes.

Still it would be great, that after a part is released, then we could revise it, change some dimensions while having an option to preserve the keepout and hand placed markers. Since it seems difficult to implement, maybe we can dream of this feature in a future major revision of the software.

Best regards,
GV

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 14 Apr 2022 at 4:24pm
All silkscreen "clearance to pad" and "min/max dot size" are defined in Options.

At least we got this far after 6 years of customers asking for this.

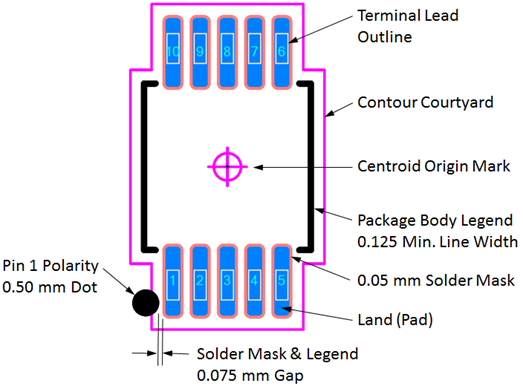

And here are the elements of a Land Pattern:



Stay connected - follow us! X - LinkedIn
Back to Top
carid34 View Drop Down
New User
New User


Joined: 28 Jun 2024
Status: Offline
Points: 1
Post Options Post Options   Thanks (0) Thanks(0)   Quote carid34 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jun 2024 at 5:25am
I understand your concern.

Unfortunately, the current software lacks customization preservation.

Manually adding the pin 1 indicator remains the best workaround despite its limitations.

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jun 2024 at 9:09am
Manually added Pin 1 Polarity Markings are saved to FPX file.

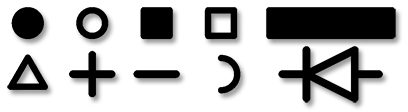

There are many different polarity marking shapes to choose from.
