Courtyard Shape, Contour or Rectangle?

 Post Reply Post Reply
Author
Message
Batiskaff View Drop Down
Advanced User
Advanced User


Joined: 30 Apr 2018
Status: Offline
Points: 65
Post Options Post Options   Thanks (0) Thanks(0)   Quote Batiskaff Quote  Post ReplyReply Direct Link To This Post Topic: Courtyard Shape, Contour or Rectangle?
    Posted: 17 Jul 2019 at 2:20am
I have the question by shape of courtyard for connectors and non-standard packages.

What is the shape will be preferred for them - rectangle or contoured polygon?

Thank you for any help.


Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jul 2019 at 7:08am
We always do a contoured courtyard but if the bends are slight, you can adjust the Courtyard to body and courtyard to pad to remove any bends.

Example: make the Courtyard to Body 0.30 and the Courtyard to Pad 0.20.

Stay connected - follow us! X - LinkedIn
Back to Top
dramos View Drop Down
Advanced User
Advanced User


Joined: 18 Feb 2021
Status: Offline
Points: 61
Post Options Post Options   Thanks (0) Thanks(0)   Quote dramos Quote  Post ReplyReply Direct Link To This Post Posted: 08 Mar 2021 at 6:00am
Hi Tom and all,

Could you explain more about Courtyard...

When use different values for Courtyard to body and for Courtyard to pad?This is something that I cannot imagine.

I've realized that, in the default preferences of the program,  the values are the same in both cases.

Thanks to all for your comments.

Regards.
David
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 08 Mar 2021 at 9:18am

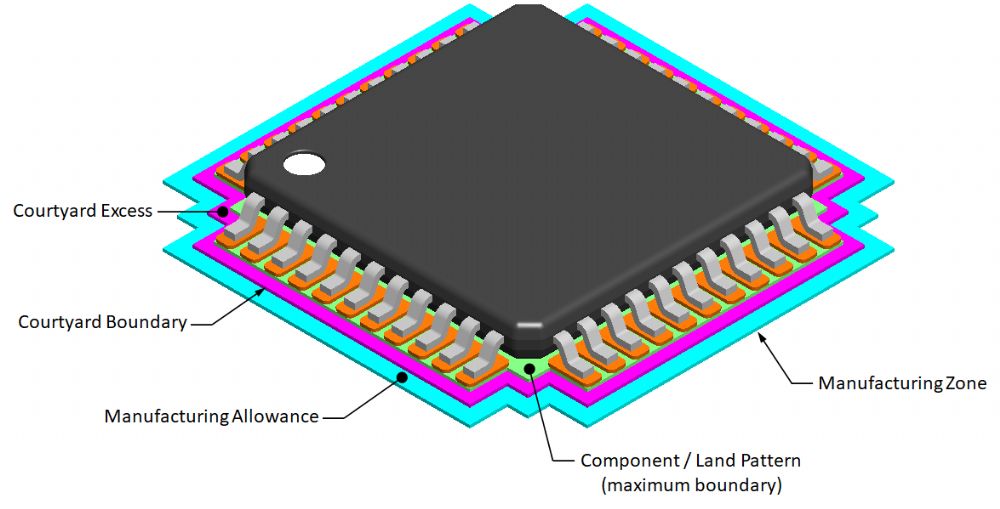

For standard packages it 0.20 mm for the Nominal Density Level.

Double that for the Maximum Density and Halve it for the Least Density.

For non-standard parts under 10 mm for any L X W X H dimensions it's 0.25 mm.

For non-standard parts over 10 mm for any L X W X H dimensions it's 0.50 mm.
