    Posted: 07 Feb 2014 at 8:30am

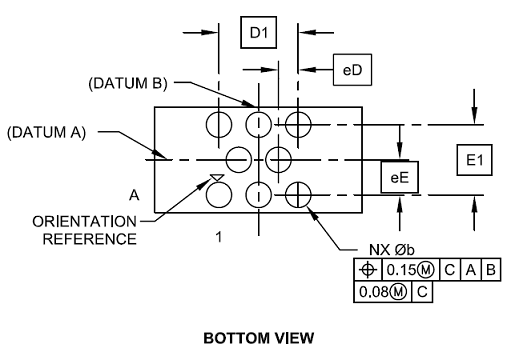

I have come across a device that has a package option called Chip Scale.  I obviously cannot build this using Library Expert, but is there a suggestion for a naming convention for these type of footprints?

Here is a link to the part in question.

http://www.microchip.com/mymicrochip/filehandler.aspx?ddocname=en546203

Chad
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5765 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2014 at 8:48am

This "Chip Scale" part (as the mfr's call them) has to be built in the FP Designer and it's just a BGA.
