Chip Array, 4 Side Flat only has 10pin

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

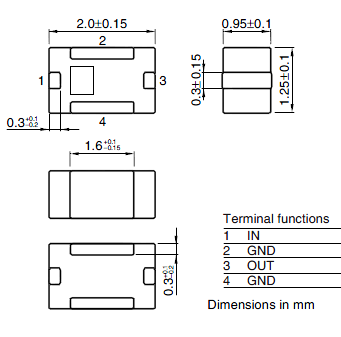

   I noticed the Chip Array, 4 Side Flat only has the capability of 10pins.  Would it be possible to include lower than 10 pins.  I commonly get 4 pin Inductors or Filters as shown below in slightly different sizes and pad dimensions.

In addition, the engineer commonly wants to change the pad size based on design requirements and the Manufacturer recommended feature would work great for this.

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
rickdehart Members Profile Send Private Message Find Members Posts Add to Buddy List Advanced User Joined: 18 Apr 2012 Location: Austin, TX Status: Offline Points: 184	Post Options Post Reply Quote rickdehart Report Post Thanks(0) Quote Reply Topic: Chip Array, 4 Side Flat only has 10pin Posted: 30 Oct 2012 at 4:49pm
	I noticed the Chip Array, 4 Side Flat only has the capability of 10pins. Would it be possible to include lower than 10 pins. I commonly get 4 pin Inductors or Filters as shown below in slightly different sizes and pad dimensions. In addition, the engineer commonly wants to change the pad size based on design requirements and the Manufacturer recommended feature would work great for this.



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 03 Nov 2012 at 1:52pm
	4-pin Chip Array's have been added to V29 release so you can now build this type of component.
