Building Circular SMT Donut

 Post Reply Post Reply
Author
Message
jnshah View Drop Down
Advanced User
Advanced User


Joined: 21 Jan 2016
Status: Offline
Points: 91
Post Options Post Options   Thanks (0) Thanks(0)   Quote jnshah Quote  Post ReplyReply Direct Link To This Post Topic: Building Circular SMT Donut
    Posted: 07 Feb 2018 at 6:09pm
What is the best way to create the circular donut for TDK Invensense ICS-40720. The datasheet can be accessed at here or at:

The inner diameter is not defined by the hole. Your help is appreciated.
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 08 Feb 2018 at 9:02am
This part can be created in FP Designer.

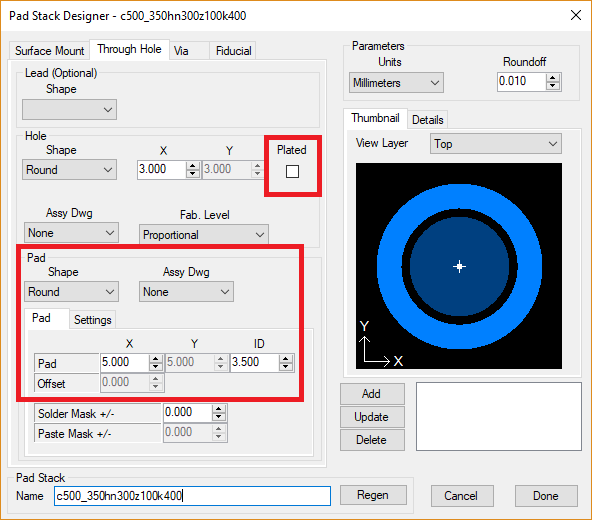

In the pad stack designer select Through-hole > non-plated > Pad Shape Round > Outer Pad & Inner pad.



However, the broken Paste Mask Stencil is unique and would have to be done in PADS Layout exported as p/d files and imported into the FPX file.
