 Topic: build non standard Jedec BGAPosted: 27 Jul 2023 at 4:07am |
|

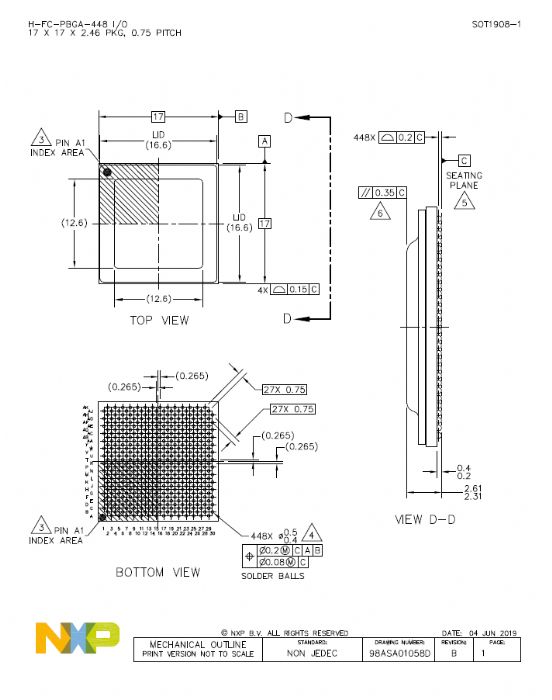

Is it possible to create such non Jedec standard FPGA in Footprint Expert 23 Enterprise
From NXP called H-FC-PBGA-448 17X17X2.46 PKG 0.75mm Pitch  |
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5745 |
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jul 2023 at 8:29am |
|
Yes, you can build this non-standard footprint using the FP Designer module and a .CSV coordinate file.
In Excel spreadsheet create column A as the Pin Name, column B as the Pad Rotation, column C as the X coordinate and column D as the Y coordinate. Then import the .txt ASCII file and it will automatically place all the pins. For more information on how to do this, contact me and off-line and I will provide instructions. |
|
|
|
|
ThomasHM
New User
Joined: 29 Jan 2014 Status: Offline Points: 9 |
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jul 2023 at 12:55am |
|
Hi Tom,

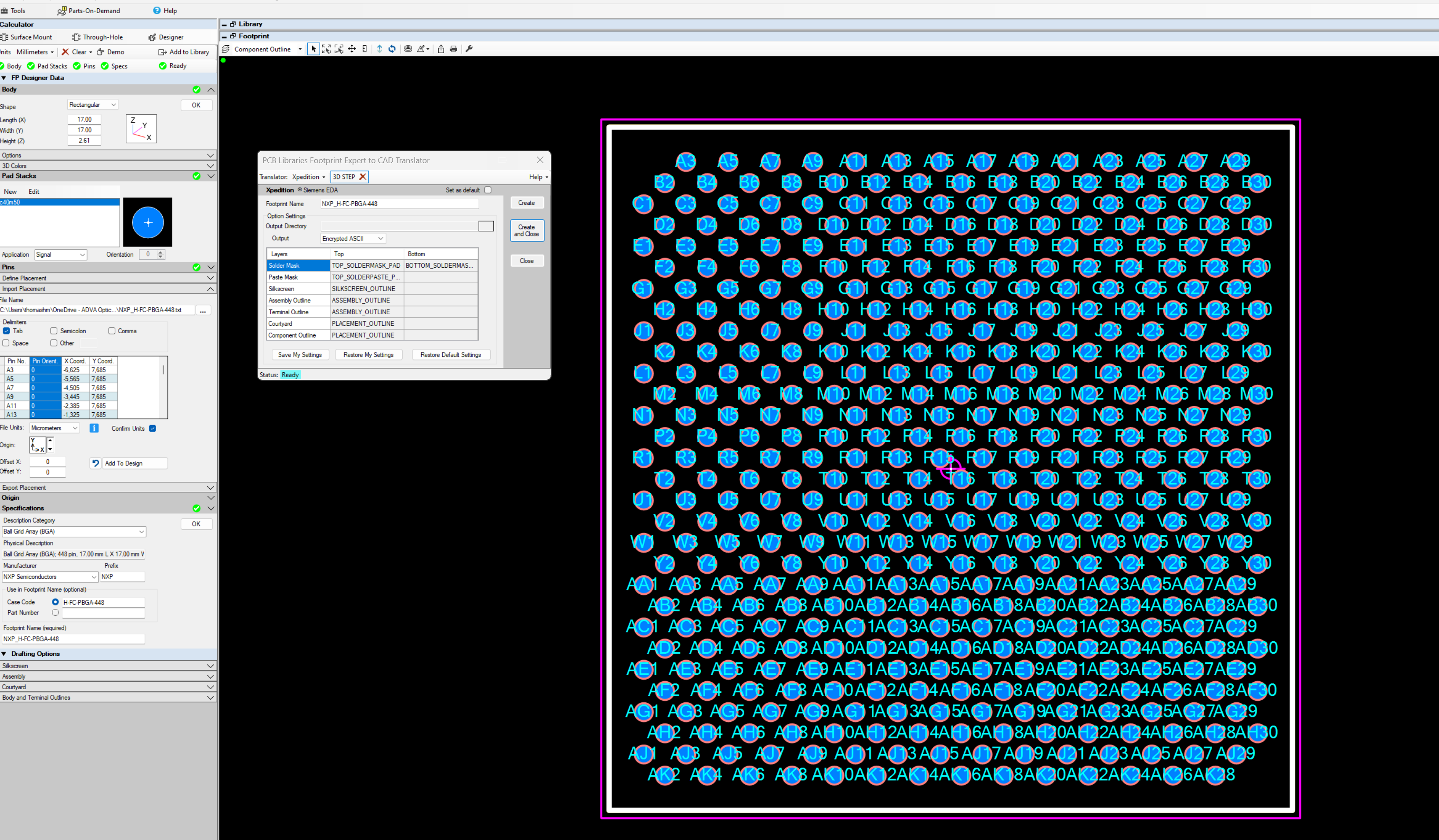

Perfect Thank You. I created that footprint within some minutes. What is your recommendation to name such cell in Mentor Graphics we are usually follow the IPC naming convention. I named it NXP_H-FC-PBGA-448  Best Regards and have a nice weekend. Thomas  |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5745 |
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jul 2023 at 7:38am |
|
Yes, the footprint name NXP_H-FC-PBGA-448 is perfect.
The footprint looks great! Good job. |
|
|
|
|
