"b" Dimension in Mounting Hole |
Post Reply
|
| Author | |
Batiskaff
Advanced User
Joined: 30 Apr 2018 Status: Offline Points: 65 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: "b" Dimension in Mounting HolePosted: 30 Dec 2020 at 6:05am |
|

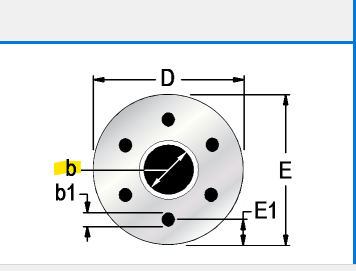

What does mean "b" dimension?
This is hole dimension that I want to get in MTG or this is diameter of screw that will be insert in MTG?  |
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 30 Dec 2020 at 10:35am |
|
For Plated Through-hole the "b" dimension is equal to the hole size.
For Non-Plated Through-hole the "b" dimension should be larger than the hole size. Probably the hole tolerance +/- 0.05 annular ring. If the hole is non-plated, you want the drill bit to go through FR4 material and not touch any copper to avoid copper slivers in the hole. |
|
|
|
|
Batiskaff
Advanced User
Joined: 30 Apr 2018 Status: Offline Points: 65 |
Post Options
Thanks(0)
Quote Reply
Posted: 30 Dec 2020 at 2:02pm |
|
So, if i need the Plated Mounting Hole with loose fit of M3 screw i should add a bit to 3 mm. For example: b=3+0,5=3,5mm. After that i should enter 3,5mm in "b" field, will it be correct?
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 30 Dec 2020 at 2:16pm |
|
A Plated Through Mounting Hole the b = Hole Size.
b > than Hole size for Non-plated holes. There is a Hole Size Calculator in the main toolbar "Tool Box". |
|
|
|
|
