Axial Vertical Mount

 Post Reply Post Reply
Author
Message
mahmoodv99 View Drop Down
Advanced User
Advanced User


Joined: 16 Jan 2016
Status: Offline
Points: 93
Post Options Post Options   Thanks (0) Thanks(0)   Quote mahmoodv99 Quote  Post ReplyReply Direct Link To This Post Topic: Axial Vertical Mount
    Posted: 31 May 2016 at 11:03pm
How create Axial Component footprint with Vertical mount option ?

Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5719
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jun 2016 at 5:57am
We use FP Designer to create both Vertical Mount Resistors and Lay Down Radial Lead capacitors.
Stay connected - follow us! X - LinkedIn
Back to Top
mahmoodv99 View Drop Down
Advanced User
Advanced User


Joined: 16 Jan 2016
Status: Offline
Points: 93
Post Options Post Options   Thanks (0) Thanks(0)   Quote mahmoodv99 Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jun 2016 at 7:56pm
How Calculate pitch and height ?
No option in axial lead form calculator for vertical mount.

It is available in LP calculator.. why not add in automatic library creation ?
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5719
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 2016 at 7:29am
These are the top 10 Library Expert develop items right now

·         Preferences:

o   Added SMD Proportional Pad Stack mathematical model for land pattern calculation

·         FP Designer:

o   Added irregular pad shape

o   Added irregular package body shape

·         Calculator:

o   Axial Lead component family – added auto-calculation of lead pitch

o   Added lay down Radial Lead component families

o   Added Standup Axial Lead component families


·         3D STEP:

o   Added lay down Radial Lead component families

o   Added Standup Axial Lead component families

Stay connected - follow us! X - LinkedIn
Back to Top
mahmoodv99 View Drop Down
Advanced User
Advanced User


Joined: 16 Jan 2016
Status: Offline
Points: 93
Post Options Post Options   Thanks (0) Thanks(0)   Quote mahmoodv99 Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 2016 at 8:43pm
Its OK, but where is the option to calculate axial vertical mount pitch and height ?Confused
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5719
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 2016 at 8:58pm
The height is the axial lead body length plus the lead bend radius.

That is suggesting that you're going to mount the body flush with the PCB surface.

Stay connected - follow us! X - LinkedIn
Back to Top
mahmoodv99 View Drop Down
Advanced User
Advanced User


Joined: 16 Jan 2016
Status: Offline
Points: 93
Post Options Post Options   Thanks (0) Thanks(0)   Quote mahmoodv99 Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 2016 at 9:09pm
How calculate bend radius and pitch ?
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5719
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jun 2016 at 1:41pm
The pin pitch is 50% of the axial lead body round up to the nearest 1 mm or 0.1" grid (depending on if you design in millimeters or mil units.

The total Height is the body plus the lead bend. Get a axial lead part and bend the lead how you want it and measure it.

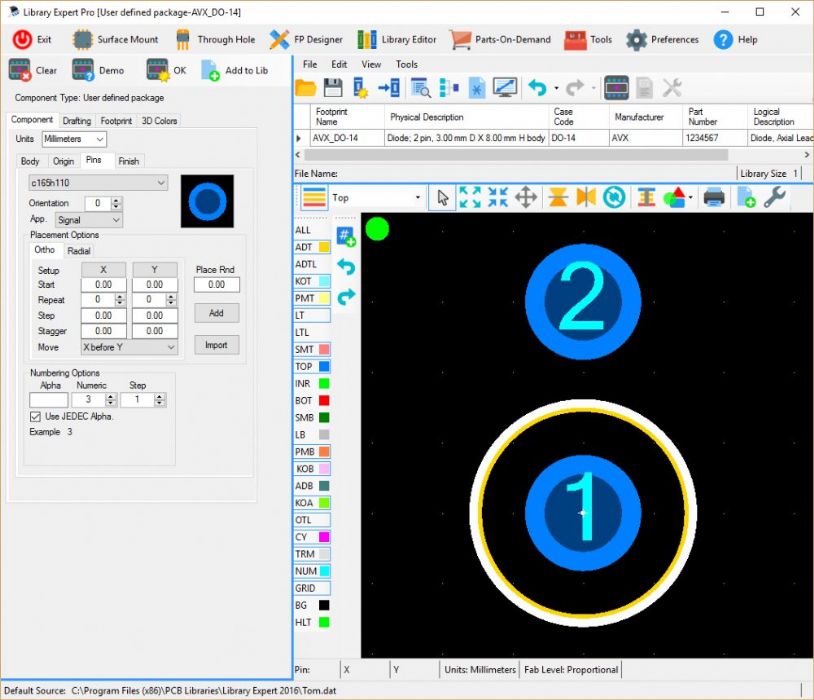

The Pin Pitch: Here is a screenshot from FP Designer and the grid display is 1 mm so the pin pitch = 3 mm
