Tom,

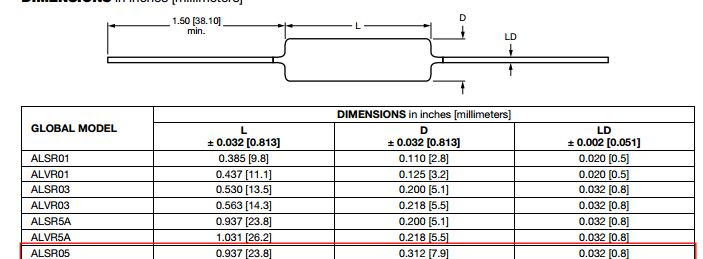

I was using the calculator for an axial resistor footprint.  The datasheet only gives me the length of the leads prior to forming:

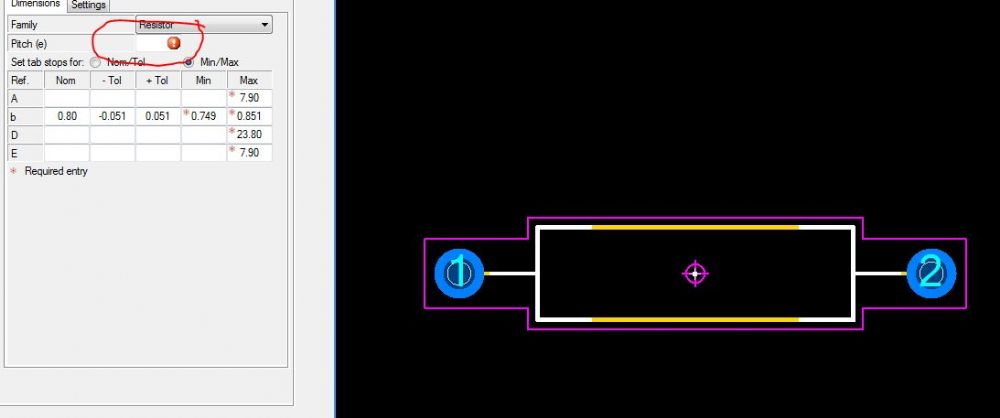

The calculator is looking for the Pitch.  How do I determine that?  Couldn't LE determine that based on the inputs?


Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5657
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 09 Feb 2015 at 2:58pm

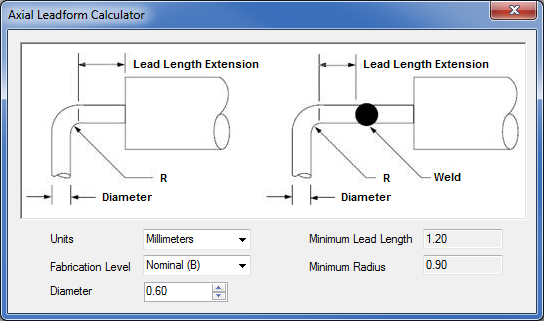

Use the "Utility Tools > Axial Lead Calculator"

Stay connected - follow us! X - LinkedIn
Back to Top
BryanT View Drop Down
Advanced User
Advanced User
Avatar

Joined: 06 Mar 2012
Location: Cupertino, CA
Status: Offline
Points: 55
Post Options Post Options   Thanks (0) Thanks(0)   Quote BryanT Quote  Post ReplyReply Direct Link To This Post Posted: 09 Feb 2015 at 3:25pm
Ahhhh - great, thanks Tom!
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5657
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 02 May 2018 at 9:20am
The Axial Lead calculation has just been updated in V2018.05 pre-release to match the updated IPC-J-STD-001.

Download the V2018.05 Library Expert Enterprise pre-release here - www.pcblibraries.com/downloads
