 Topic: Altium ImportPosted: 03 Nov 2014 at 1:17pm |
|
Really enjoy the new scripting for Altium!!!
Is there a way (inside Lib Expert Pro) to change the default output layer that the step model is going to? Altium's default and thus a lot of Altium designers is "Mechanical 1" not "Mechanical 13". Thanks, Paul
|
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5719 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2014 at 1:30pm |
|

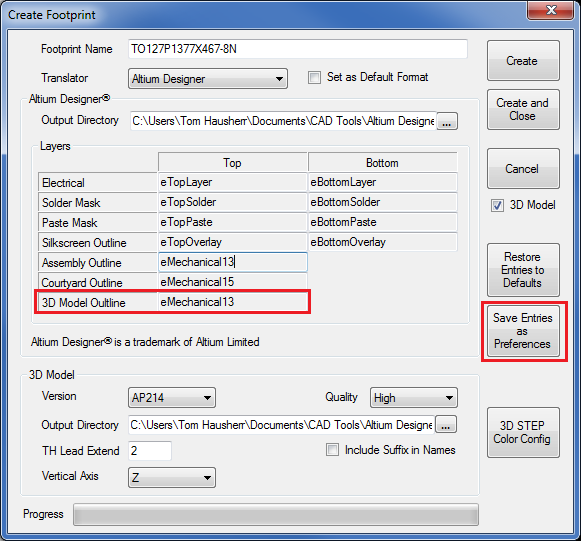

You can change any of the layer assignments in the CAD tool export GUI. Just select "Save Entries as Preferences" after you edit the layer mapping.
|
|
|
|
|
Tempest
Active User
Joined: 20 Jun 2012 Location: Oregon Status: Offline Points: 20 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2014 at 1:45pm |
|
Hi Tom,
I can't edit these text in these boxes? That was first thing I tried. Paul
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5719 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2014 at 2:22pm |
|
Well, then we'll have to fix that so you can edit the layer assignment in V2015.02. We'll have a .02 pre-release tomorrow here - www.pcblibraries.com/downloads (actually there already is a .02 pre-release there right now that fixed an Altium through-hole script bug). But that leads us back to the "default" 3D STEP layer anyway. We get our information from a large pool of users that say that the "default" 3D STEP layer is Mechanical 13. We'll change the default layer assignment to Mechanical 1 if Altium corporate agrees with you. I'm waiting for their reply answer right now. |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5719 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2014 at 3:02pm |
|
If you download a Footprint with 3D Model from the Altium library vault, the 3D STEP is on layer Mechanical 13. We're only defaulting to what the Altium Vault defaults too. But in V2015.02 you'll be able to change the layer assignments. |
|
|
|
|
Tempest
Active User
Joined: 20 Jun 2012 Location: Oregon Status: Offline Points: 20 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2014 at 3:04pm |
|
Thanks Tom, changing the layer is not too big of a deal inside Altium but it's just one less step if we can set it up in PCB lib side of things.
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5719 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2014 at 6:25pm |
|
Here is the reply from Altium: In the absence of any mechanical layers or prior default user settings, if I add a STEP model, it goes to Mechanical 1. However, 3D bodies from our content library team uses layer Mechanical 13. This may be the cause of the confusion. At the end of the day, the user needs to decide which is better for their assembly drawings, but from a 3D model standpoint it almost doesn't matter which layer is used.
|
|
|
|
|
