Add Option to Silkscreen On Pin 10 Multiples
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
emj_rnrg View Drop Down
Active User
Active User


Joined: 12 Oct 2016
Status: Offline
Points: 14 		Post Options Post Options   Thanks (0) Thanks(0)   Quote emj_rnrg Quote  Post ReplyReply Direct Link To This Post Topic: Add Option to Silkscreen On Pin 10 Multiples
    Posted: 09 Dec 2024 at 8:32am
It's common to add silk squares on every 10th pin on a footprint. Please add this option to the Silkscreen section of footprint expert.

Thank you!
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Online
Points: 5739 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jan 2025 at 12:07pm
I think you're asking for something automatic.

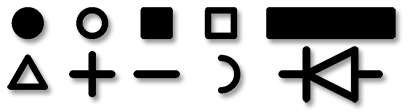

We do have Drafting Outlines that you can manually place at any location.



I would recommend Lines, but then they would be outside the courtyard.
Stay connected - follow us! X - LinkedIn
Back to Top
emj_rnrg View Drop Down
Active User
Active User


Joined: 12 Oct 2016
Status: Offline
Points: 14 		Post Options Post Options   Thanks (0) Thanks(0)   Quote emj_rnrg Quote  Post ReplyReply Direct Link To This Post Posted: Yesterday at 5:21am
Hi Tom,

I wasn't aware of the drawing shapes. I did look at them and an idea like this works, but ideally the silk rectangle would be placed on every 10th pin just far enough away to maintain silk to pad clearance.

I see in the form that you can capture coordinates before the form was opened. Could the form be modified to select a pin and have the shape placed next to the pin while maintaining clearance?

Thank you!
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Online
Points: 5739 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 20 hours 26 minutes ago at 1:07pm
Selecting the F2 keyboard button saves the dimensional data from the last Right Mouse Button (RMB) click.

RMB click + F2 puts the X,Y coordinate in your buffer. Then open the Drafting Options and the saved dimension loads into the UI. Select the drafting shape, layer and size and select "Apply" and then select "New" to insert the next shape at a new X or Y coordinate.

Insert one drafting line perfect location first, then add the other shapes in the same dialog box. It takes 2 minutes to add all the lines, squares, dots you want.

These manually inserted drafting outlines are added to the FPX library file.
