Kenji
Active User
Joined: 23 May 2016 Status: Offline Points: 35 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: About the Thermal PadPosted: 06 Sep 2017 at 10:00pm |
|

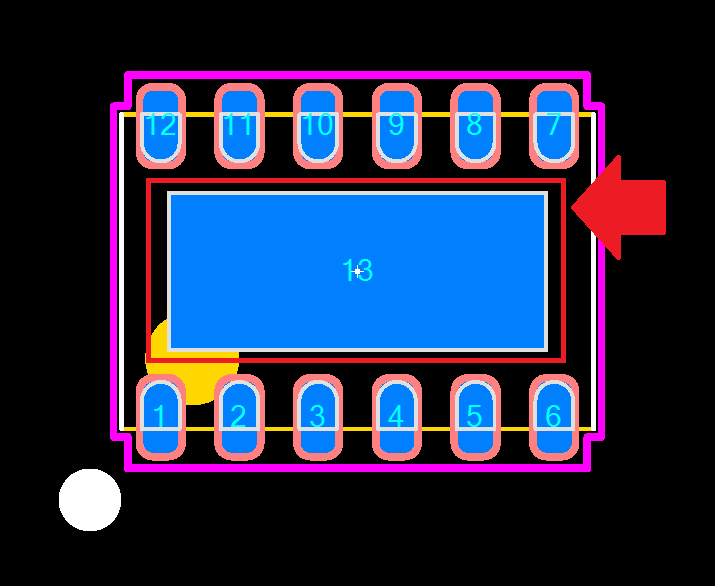

I found this issue. I select the fpx file in the library editor AS Below, Red point is Thermal pad. But It doesn't make solder mask oversize. How do you set it up to make the solder mask oversize?  |
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5780 |
Post Options
Thanks(0)
Quote Reply
Posted: 07 Sep 2017 at 8:12am |
|

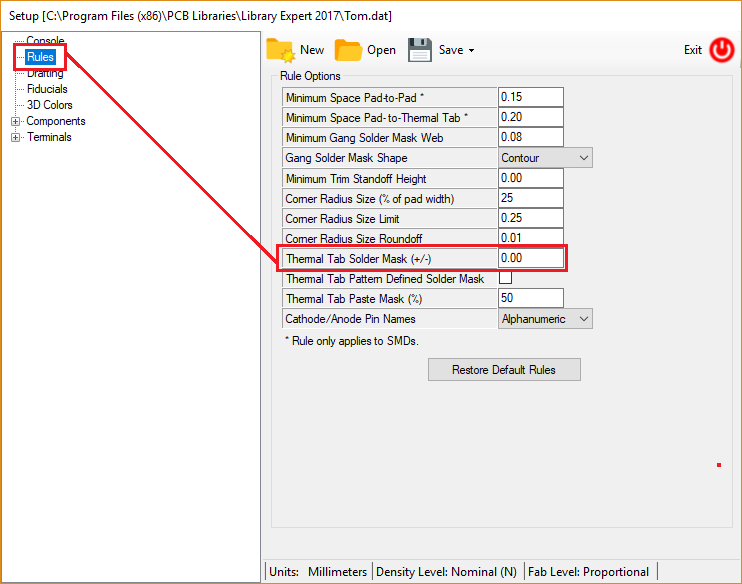

In "Preferences > Rules > Thermal Tab Solder Mask"
 |
|
|
|
|
Kenji
Active User
Joined: 23 May 2016 Status: Offline Points: 35 |
Post Options
Thanks(0)
Quote Reply
Posted: 07 Sep 2017 at 10:17pm |
|
ThanX
|
|
|
|
|
