 Topic: 3-Pin Chip Package - SYFER_0805J1000472MXTE03Posted: 06 Dec 2013 at 4:58am |
|
Hi All,
I have a slightly unusual package, which I can't find in the PCB Expert software to generate, I could do this manually of course, but I would rather keep everything IPC if possible. Can somebody recommend how I do this in the PCB Footprint Expert? Cheers   |
|
 |
|
|
|
|
Nick B
Admin Group
Joined: 02 Jan 2012 Status: Offline Points: 1941 |
Post Options
Thanks(1)
Quote Reply
Posted: 06 Dec 2013 at 10:46am |
|
The Footprint Designer option in the Library Expert can do build this part.
|
|
|
|
|
Nick B
Admin Group
Joined: 02 Jan 2012 Status: Offline Points: 1941 |
Post Options
Thanks(1)
Quote Reply
Posted: 06 Dec 2013 at 11:15am |
|

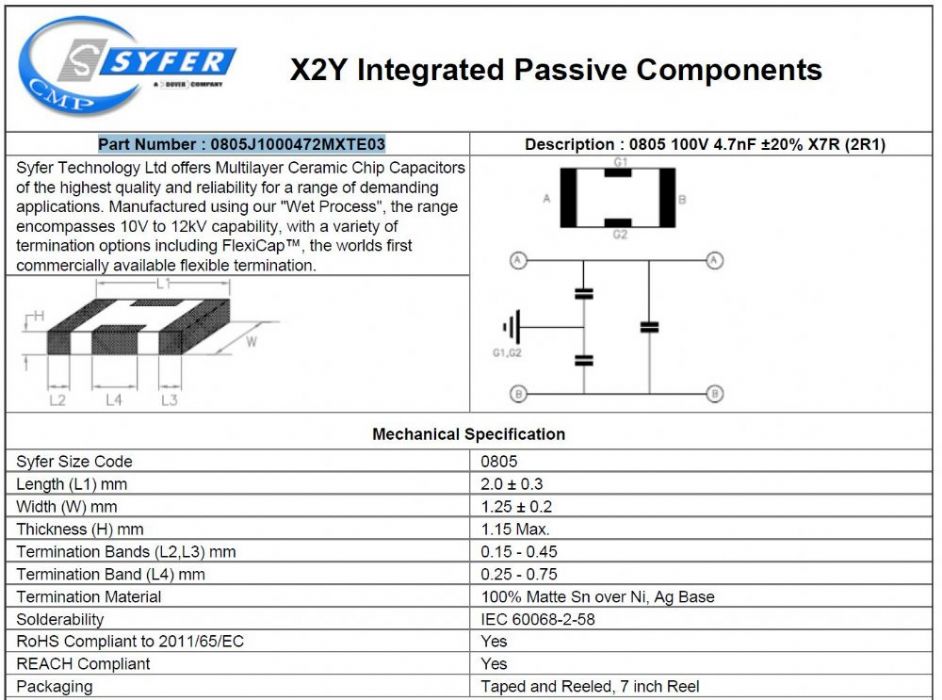

You will need to use the manufacturer recommended footprint (not part of the screenshot above), but I searched online for the spec sheet for 0805J1000472MXTE03 and it is provided. |
|
|
|
|
