    Posted: 30 Oct 2015 at 5:32pm
Is there a correct package type in Library Expert to create an accurate landpattern for this component? SOL was the closest I could find but this is limited to 8 pins.  uploads/71/package_w4.pdf
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 30 Oct 2015 at 9:20pm

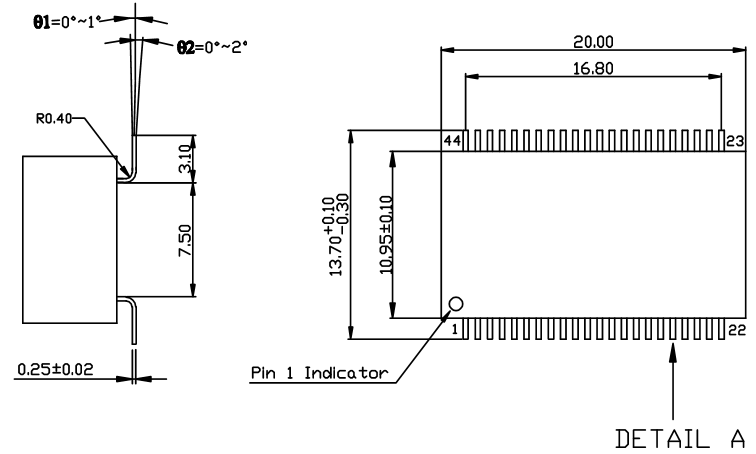

This is a unique lead form that is not registered in any standard.

It would require a mfr. recommended pattern.

Or I would personally calculate the pad length and spacing using the math that is noted in "What's New in IPC-7351C" - download

The "Pad Length" math calculation for a Nominal Density Level is (get the pad width and pad spacing from the IPC-7351C paper):
  • Toe = Nominal Terminal Lead Thickness = 0.25 mm
  • Heel = 1.5 X Nominal Terminal Lead Thickness = 0.375 mm
  • Pad Length = Toe + Heel + Nominal Lead Length = 3.725
