3D Options: Material Condition

 Post Reply Post Reply
Author
Message
dramos View Drop Down
Advanced User
Advanced User


Joined: 18 Feb 2021
Status: Offline
Points: 61
Post Options Post Options   Thanks (0) Thanks(0)   Quote dramos Quote  Post ReplyReply Direct Link To This Post Topic: 3D Options: Material Condition
    Posted: 09 Jan 2023 at 2:26am
Hi to all,

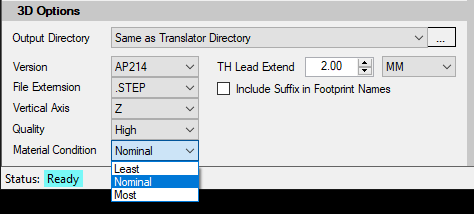

I cannot understand very well the meaning of the parameter Material condition (Least, Nominal, Most).
Which is the meaning of it? Which is the difference?



Is there any relation with the Density Level of the footprint created?
I mean, if I am creating a footprint with Most material condition should I choose the 3D Material condition as Most?

Regards,
david
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 09 Jan 2023 at 9:42am

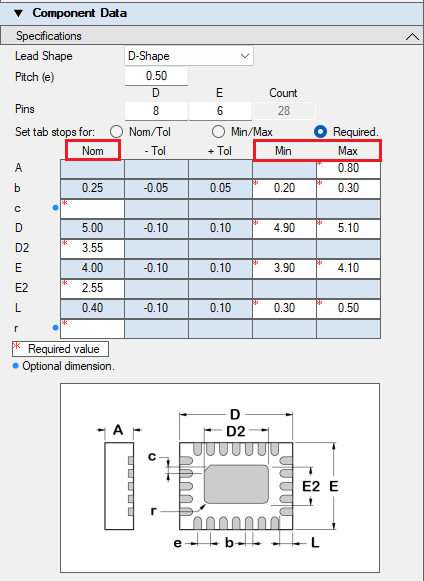

There are 3 columns of dimensional data in the Footprint Expert component family calculators.

Nom / Min / Max and when you select a Material Condition, the 3D STEP output will use the column of data that you select. The default setting is "Nominal" material condition.



Stay connected - follow us! X - LinkedIn
Back to Top
dramos View Drop Down
Advanced User
Advanced User


Joined: 18 Feb 2021
Status: Offline
Points: 61
Post Options Post Options   Thanks (0) Thanks(0)   Quote dramos Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jan 2023 at 12:12am
Dear Tom,

Many thanks for your fast answer.

Regards,
David
Back to Top
boardrouter View Drop Down
New User
New User


Joined: 13 Oct 2022
Status: Offline
Points: 1
Post Options Post Options   Thanks (0) Thanks(0)   Quote boardrouter Quote  Post ReplyReply Direct Link To This Post Posted: 10 Feb 2023 at 8:57am
These refer to the +/- tolerance of the feature:

Least = the minimum dimension
Nominal = the midpoint between least and most
Most = the maximum dimension

Example 1 (symmetrical tolerance):
3.57 +/-0.10
Least= 3.47
Nominal= 3.57
Most= 3.67

Example 2 (asymmetrical tolerance):
3.67 +0.000/-0.20
Least= 3.47
Nominal= 3.57
Most= 3.67

Typically the nominal value is the stated dimension where the + and the - tolerances are equal, as in Example 1.


Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 10 Feb 2023 at 11:49am
The Nominal density level is the most popular in the commercial industry.

Military weapons contractors seem to use the Maximum density level for 3D models.

Least is never used by anyone.

Stay connected - follow us! X - LinkedIn
Back to Top
