Wrong Pad Stack Name?

 Post Reply Post Reply
Author
Message
dlveazie View Drop Down
New User
New User


Joined: 17 Mar 2017
Status: Offline
Points: 4
Post Options Post Options   Thanks (0) Thanks(0)   Quote dlveazie Quote  Post ReplyReply Direct Link To This Post Topic: Wrong Pad Stack Name?
    Posted: 01 Dec 2017 at 8:34am

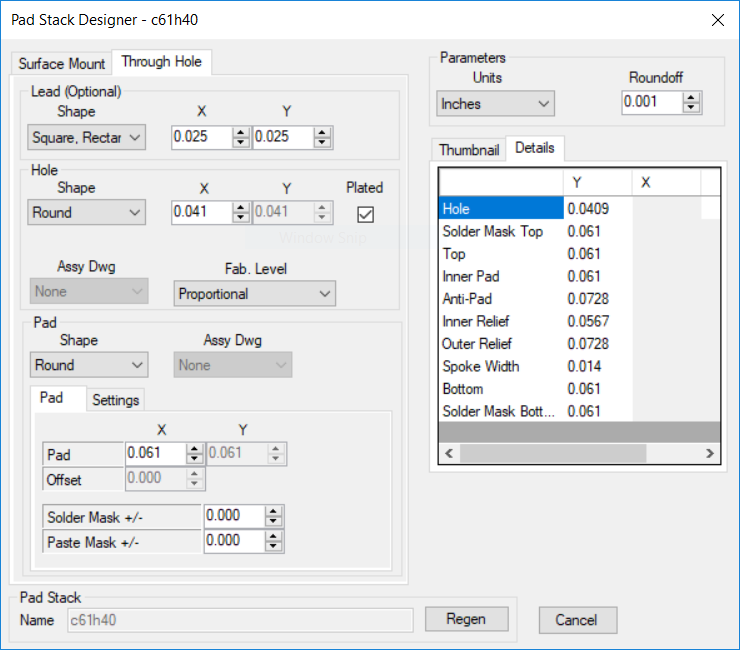

When I use inch dimensions in pad stack calculator, the pad stack name looks like it's getting truncated instead of rounded.

Creating pad stack for 0.025" x 0.025" lead says hole size should be 0.041" with 0.061" pad but pad stack name is c61h40.



Back to Top
Back to Top
Jeff.M View Drop Down
Admin Group
Admin Group


Joined: 16 May 2012
Location: San Diego
Status: Offline
Points: 477
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jeff.M Quote  Post ReplyReply Direct Link To This Post Posted: 01 Dec 2017 at 9:13pm
Pad stack name sizes (and certain footprint sizes) are created in what we call 'centrons'.
Without going into a whole lot of detail, a conversion factor is added to a dimension and decimal places are dropped.
The hole size in this case is actually 0.409.
After conversion and dropping the decimal place it equals 40 not 41 as you would expect if it were simply rounded thus h40.
Stay connected - follow us! Twitter - LinkedIn
