Hello All,

i missed some default settings.

- "Pad Size Roundoff" for the TH Terminals
- "Solder Mask Annular Expansion"
- "Paste Mask (% of Pad Size)"

Also when the padstack is created it generates wrong pad names.

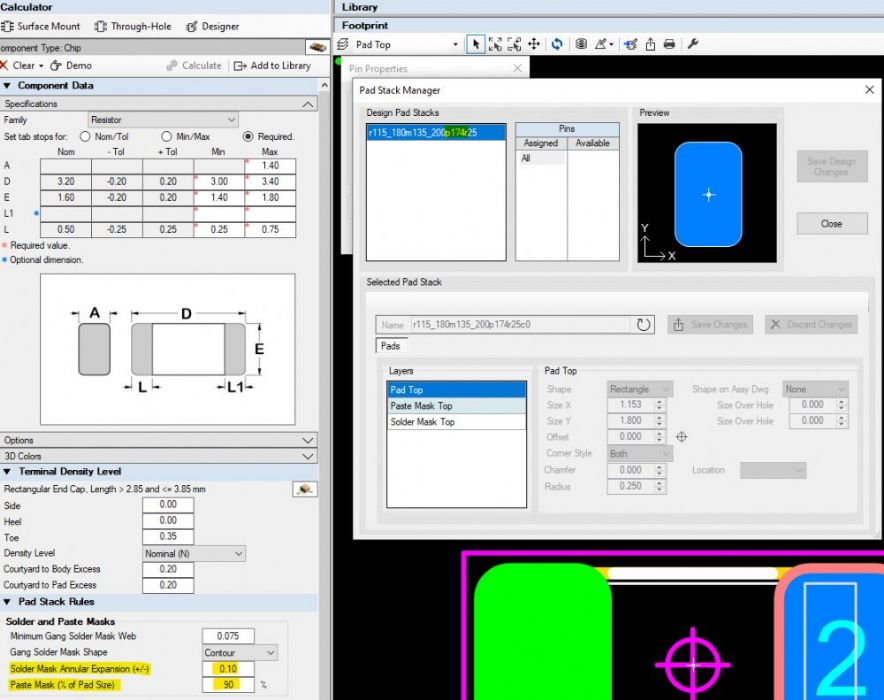

I checked the demo values for Chip Resistor and set "Solder mask .." to 0.1 and the Paste to 90% the program generates a name like in the picture in 2 diffrent versions.





Best Regards
Olaf Mueller
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 16 Apr 2021 at 8:07am
You have "File > Options > Pad Stack Rules > SMD Solder and Paste Masks" to globally set your Solder Mask and Paste Mask for all footprints.

The Round-off is new in V2021 Console Options - Decimal Place Accuracy goes from 2 - 6 places for minimum and maximum.

The defaults are currently 2 minimum and 3 maximum but you can set it to whatever you what for low or high resolution.
