Hello,

I'm having trouble trying to work out how the parameter "Minimum Gang Solder Mask Web" works under the "Rules" tab.
I have it set to 0.08mm and am assuming this is the minimum width of the solder mask sliver between pads. When I build my part, which in this case is a QFP50P1200X1200X160-64 and then import it into Altium my solder mask sliver between pads is 0.06mm???
Can anyone please tell me if I'm understanding this rule correctly and if so, how do I get it to work correctly.

Thanks
Todd
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2014 at 8:00am

Altium globally produces its own solder mask by design rules and Altium does not support true "Pad Stacks".

You cannot control individual solder mask on pads except to use copper on the solder mask layer.

Your fabrication shop will do the gang mask for you if they find any slivers less than their manufacturing tolerances.

Stay connected - follow us! X - LinkedIn
Back to Top
Todd Manning View Drop Down
Active User
Active User


Joined: 25 Jul 2013
Location: Perth WA
Status: Offline
Points: 49
Post Options Post Options   Thanks (0) Thanks(0)   Quote Todd Manning Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2014 at 5:30pm
Hi Tom,

Thanks for you reply.

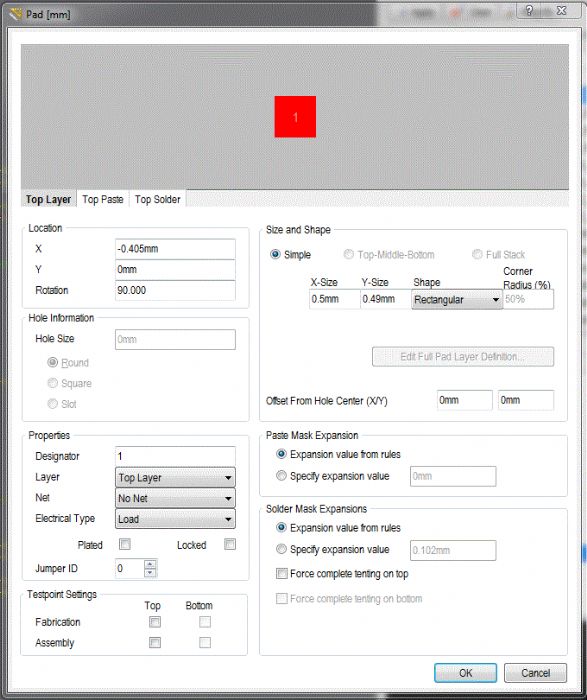

I've attached an image of the property box for a pad in Altium. In the bottom-right there is the option to manually overwrite the global solder mask expansion setting and then specify a custom expansion value. Are you somehow able to ulitise this feature to automatically generate the correct minimum sliver width?


Regards
Todd
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2014 at 6:01pm

Todd,

I have never been concerned with Solder Mask Web Slivers.

Most fabrication shops use Valor Genesis as the front end CAM tool and it rules DRC rule checks for everything you can think of. Every manufacturer has a minimum solder mask to solder mask clearance. The norm is 3 mils or 0.08 mm web width is doable and anything below that web thickness is not.

I leave this up to the fabrication shop.

I've worked as a volunteer for IPC for the past 15 years and every time the subject of Solder Mask Swell comes up the response is always "Solder Mask should be 1:1 scale of the pad size and allow the fabrication shop to swell (oversize) the mask per their manufacturing tolerance.

Altium is slightly different as they DRC check Silkscreen to Solder Mask so you tend to try and swell the solder mask in the CAD tool and then run DRC checks to find violations.

But I agree with IPC and that Solder Mask Swell and Gang Masking is the fabrication CAM operator's job and not the PCB designer's. They know what they can manufacture, they use tools that cost 10 times Altium list price and they have the experience with their equipment.

But if you insist, in Altium (and other PCB design tools), the only way I know how to Gang Mask is to add copper on the solder mask layer.

Stay connected - follow us! X - LinkedIn
Back to Top
Todd Manning View Drop Down
Active User
Active User


Joined: 25 Jul 2013
Location: Perth WA
Status: Offline
Points: 49
Post Options Post Options   Thanks (0) Thanks(0)   Quote Todd Manning Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2014 at 6:20pm
Hi Tom,

I have always liked the idea, that what information I supply the manufacturer is exactly what they will produce giving me 100% control over the design, so therfore have always incorporated solder mask swell in my design.
I understand your point as well, as it would allow you to change manufacturers without the worry of whether or not they could produce to my specified tolerances.
I think at this stage I will continue with the way I do things as it has worked without issues up to now and manually edit the solder mask swell after I import the parts into Altium.
Thanks for your input.

Regards
Todd
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2014 at 6:41pm

Todd,

Every manufacturer will modify your Gerber data to match their manufacturing tolerances to insure that the delivered boards match your fabrication notes.

They will swell your outer layer pads, traces and vias to compensate for their etching process.

They will trim all silkscreen that violates solder mask overlap.

They will swell through-hole annular rings to meet IPC minimum annular ring to compensate for their drill machine accuracy and drill drift.

The fabrication shop will always manipulate your Gerber data to increase yield and reduce scrap.


Stay connected - follow us! X - LinkedIn
Back to Top
Todd Manning View Drop Down
Active User
Active User


Joined: 25 Jul 2013
Location: Perth WA
Status: Offline
Points: 49
Post Options Post Options   Thanks (0) Thanks(0)   Quote Todd Manning Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2014 at 7:53pm
Hi Tom,

Thanks, I appreciate the extra information.

Regards
Todd
