SOIC Missing Polarity Marker |
Post Reply
|
| Author | |
phil.holden
Advanced User
Joined: 14 Aug 2020 Status: Offline Points: 59 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: SOIC Missing Polarity MarkerPosted: 07 Sep 2021 at 11:30am |
|
Every STEP I output in the SOIC family has the pin 1 marker missing from the model.
|
|
 |
|
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5940 |
Post Options
Thanks(0)
Quote Reply
Posted: 07 Sep 2021 at 11:43am |
|

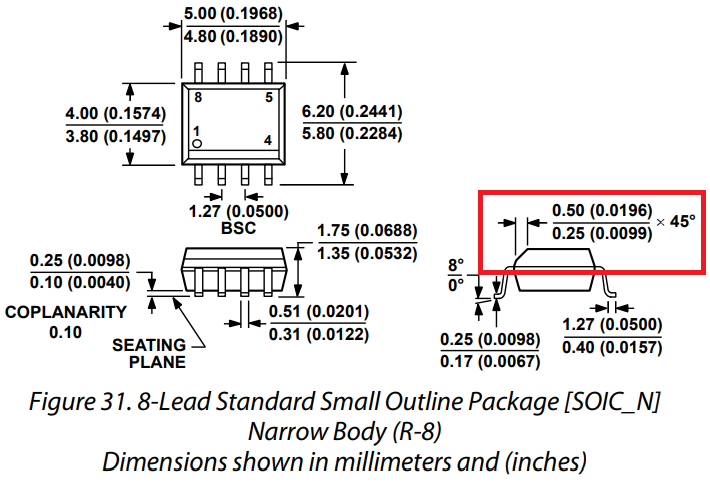

The 1.27 mm (50 mil) pin pitch SOIC has a Body Chamfer all along the Pin 1 Side.
 |
|
|
|
|
phil.holden
Advanced User
Joined: 14 Aug 2020 Status: Offline Points: 59 |
Post Options
Thanks(0)
Quote Reply
Posted: 07 Sep 2021 at 11:45am |
|
Thanks Tom. I hadn't noticed this.
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5940 |
Post Options
Thanks(0)
Quote Reply
Posted: 07 Sep 2021 at 11:47am |
|
It's one of the ways to differentiate between mil pitch and metric pitch SO's.
|
|
|
|
|
phil.holden
Advanced User
Joined: 14 Aug 2020 Status: Offline Points: 59 |
Post Options
Thanks(0)
Quote Reply
Posted: 07 Sep 2021 at 11:48am |
|
Good point. Something I shall pass on to my colleagues.
|
|
|
|
|
