    Posted: 03 Mar 2023 at 4:13am
Hi Tom,

I read the IPC-7351 document and I did not see solder joint goal table for flat leads [SODFL and SOTFL] components.

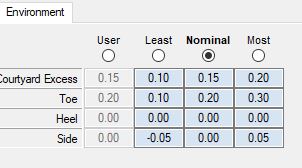

But in library calculator Toe joint value found as 0.20 mm.

From where did they find this value. Is this 0.20 mm is fine for Toe end.


Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 03 Mar 2023 at 8:59am
Per IPC J-STD-001 Standard, the Toe value is determined by the Terminal Lead Thickness.

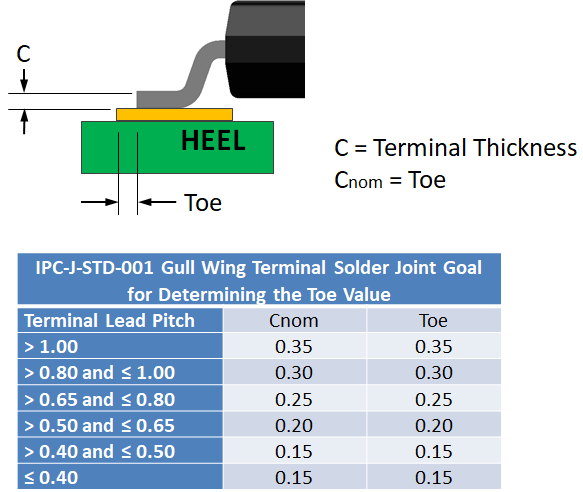

This is the example of the Gull Wing Terminal Lead form.




Stay connected - follow us! X - LinkedIn
Back to Top
mohamedjubair.k View Drop Down
Active User
Active User


Joined: 05 Sep 2022
Status: Offline
Points: 26
Post Options Post Options   Thanks (0) Thanks(0)   Quote mohamedjubair.k Quote  Post ReplyReply Direct Link To This Post Posted: 03 Mar 2023 at 6:10pm
Hi Tom,

Thank you for you quick reply.

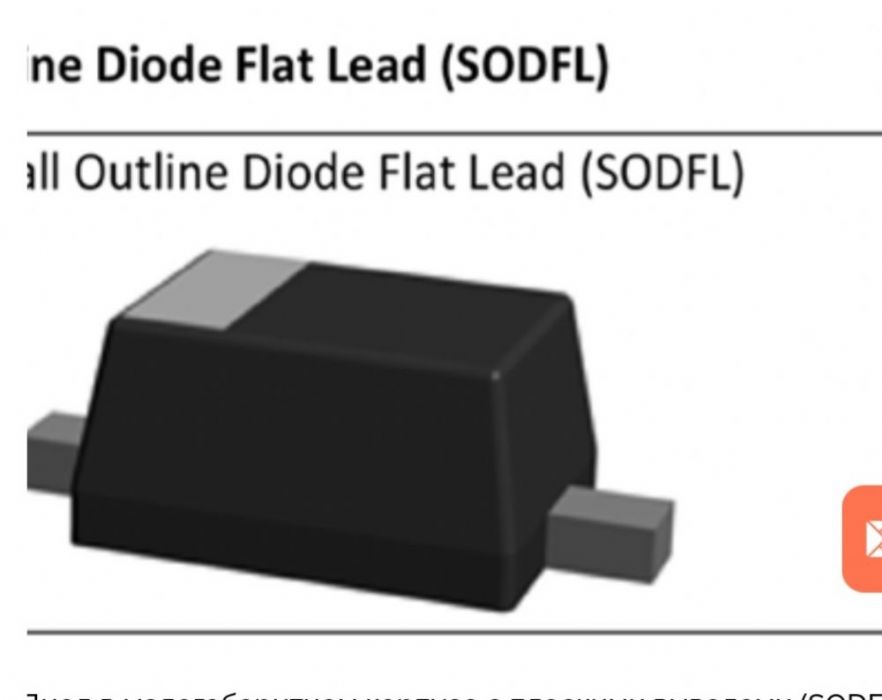

Actually I need information about Flat Lead component like attached.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 04 Mar 2023 at 9:45am

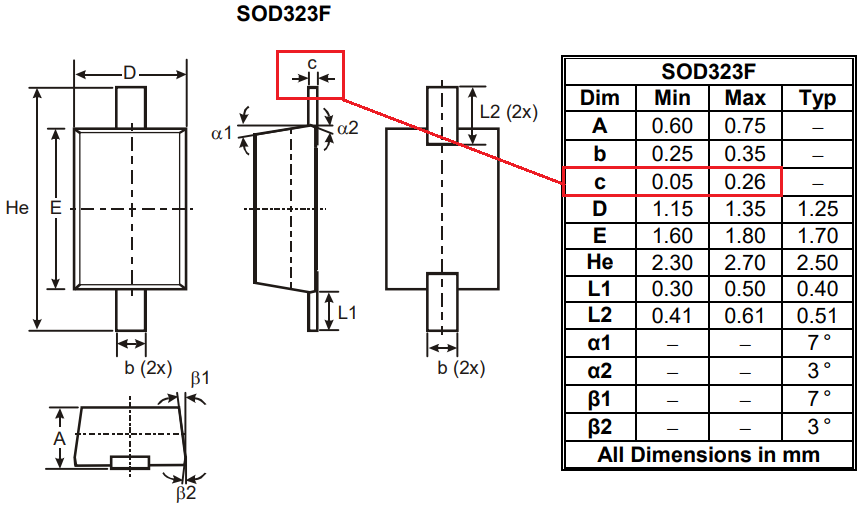

It's the same concept. You take the "Nominal c" dimension (and round up to the nearest 0.05) and that is your Toe goal.

Anything bigger than that is a waste of PCB real-estate and excess solder.

The main strength in the solder joint is under the terminal lead.



Stay connected - follow us! X - LinkedIn
Back to Top
mohamedjubair.k View Drop Down
Active User
Active User


Joined: 05 Sep 2022
Status: Offline
Points: 26
Post Options Post Options   Thanks (0) Thanks(0)   Quote mohamedjubair.k Quote  Post ReplyReply Direct Link To This Post Posted: 05 Mar 2023 at 8:53am
Thank you so much Tom!
Back to Top
