Can anyone advice me how should silkscreen look like for connectors?

For example this one:

How should I identify the first pin (or corner where that pin is located)?
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 24 Aug 2014 at 11:30am
Sometimes the absence of silkscreen makes the best polarity marker. But you need to make the silkscreen outline so that it's visible after assembly.

Reason: Adding silkscreen text or triangles or dots usually hinders part placement on high density boards.

It's OK to add pin number text if your PCB layouts are low density, but that does not seem to be the common case anymore.

If you use placement courtyards, all silkscreen outlines should be located inside the courtyard.

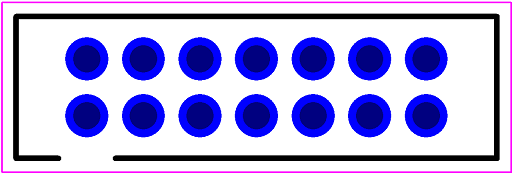

This picture has a courtyard (magenta) and a silkscreen outline. Can you immediately tell where Pin 1 is? Can the assembly shop tell where pin 1 is?


I would like constructive feedback on why this type of polarity marking is OK or not good.
Stay connected - follow us! X - LinkedIn
Back to Top
Dale View Drop Down
Active User
Active User


Joined: 04 Mar 2012
Location: Australia
Status: Offline
Points: 15 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dale Quote  Post ReplyReply Direct Link To This Post Posted: 24 Aug 2014 at 4:22pm

The part in question looks like it would be hand placed.

In that context I would argue that the primary use of the silkscreen is as an assembly aid, and therefore it should mimic/emphasise the obvious/non-obvious polarizing feature(s) of the part.


So for this part I would show a gap in the silkscreen, but where the notch is placed. Possibly even the number (14) could be shown.


The requirement for the silkscreen to be visible after placement is dependant upon the manufacturing environment - is the silkscreen an important inspection aid?
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 24 Aug 2014 at 7:03pm

Yes, the silkscreen is a post-assembly inspection aid to assist the end-user to visually inspect that every component was not inversely inserted.


Stay connected - follow us! X - LinkedIn
Back to Top
ernestorey View Drop Down
New User
New User


Joined: 10 Apr 2014
Location: Santa Clara, CA
Status: Offline
Points: 10 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ernestorey Quote  Post ReplyReply Direct Link To This Post Posted: 25 Aug 2014 at 10:12am
In my experience the most important function of the silkscreen for a connector is to illustrate whether it is mounted on the top or bottom side of the board.
Back to Top
JJonas View Drop Down
Advanced User
Advanced User


Joined: 21 Apr 2014
Status: Offline
Points: 113 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JJonas Quote  Post ReplyReply Direct Link To This Post Posted: 25 Aug 2014 at 4:50pm
Originally posted by Tom H Tom H wrote:

Can you immediately tell where Pin 1 is? Can the assembly shop tell where pin 1 is?
 - Looking at your picture, yes, I can immediately tell where pin 1 is. I am not sure if it will be as obvious in real life because cutout is very small (~1 mm). And what if there is a slight offset (either of silkscreen or connector)?

 - What if we use the same connector but in SMD package? Then we cannot place cutout of silkscreen directly at that pin. In addition, there is no much space between the first pin and the top of connector.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 25 Aug 2014 at 5:05pm

All very good points.

I'm glad that we're having a discussion on silkscreen polarity marking because we're in search of the perfect solution to this issue.


Stay connected - follow us! X - LinkedIn
Back to Top
jameshead View Drop Down
Expert User
Expert User
Avatar

Joined: 20 Mar 2012
Location: Oxfordshire, UK
Status: Offline
Points: 576 		Post Options Post Options   Thanks (0) Thanks(0)   Quote jameshead Quote  Post ReplyReply Direct Link To This Post Posted: 26 Aug 2014 at 2:13am
I could work it out.  This is a "grey area" because I specifically advise on my silkscreen layers that the silkscreen should not be used for component assembly - that's what the centroid x/y data and assembly drawing is for.  I'm happy for pin 1 on the assembly drawing to be a dot or a triangle or chamfered corner, as long as it's noticeable.

That said the silkcreen should still be useful as an aid for hand-insertion.  Whether it's a dot or a line doesn't matter as long as there's a consistant style on the board and for a particular customer.

Personally on some connectors I add silkcreen to resemble the connector in some way to make it clear.

On a screw terminal block I add a solid block of silkscreen to indicate the back, solid end of the connector.

On a wire to board connector with a friction lock such as the Molex 22-27-2xx1 series I will add solid silkscreen blocks for the friction lock.

On an IDC shrouded header I will add a solid silkcreen block to indicate the polarising cut-out in the shroud where it doesn't interfere with the pads.

If I can't do anything obvious and sensible then I will leave it to the assembly diagram to show it more clearly and add a line for pin 1.
