SC70 4-Pin With Power Pin on Pin 2
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
O.Mueller View Drop Down
Active User
Active User


Joined: 20 Jan 2013
Status: Offline
Points: 26 		Post Options Post Options   Thanks (0) Thanks(0)   Quote O.Mueller Quote  Post ReplyReply Direct Link To This Post Topic: SC70 4-Pin With Power Pin on Pin 2
    Posted: 11 Jun 2013 at 2:08am
Hello All,

Does anyone have a solution to setup a SC70 4-pin package with the location of the Power Pin on Pin 2?

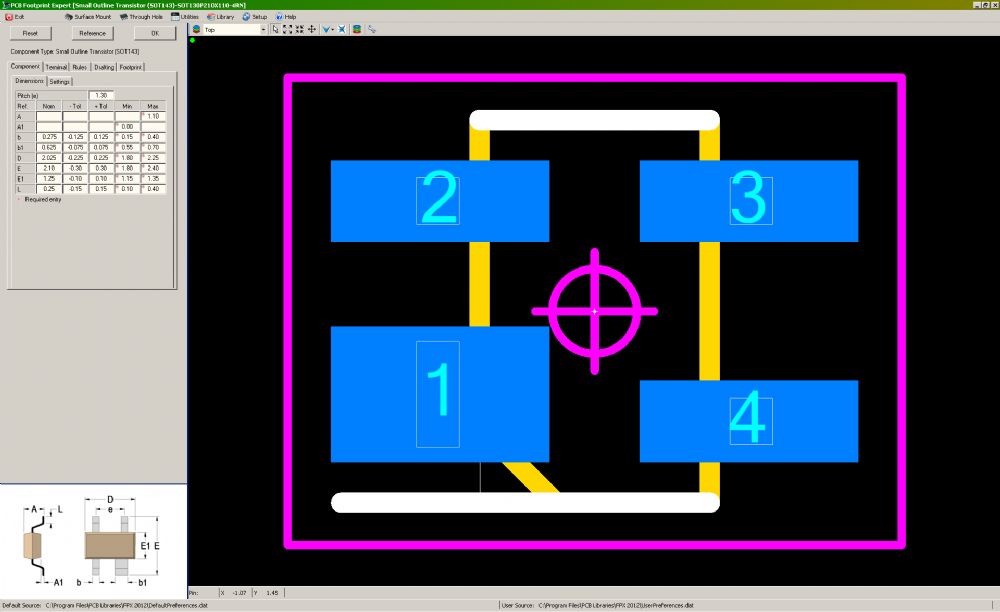

The SOT143 shows the right picture but set the Power Pin to Pin 1.

The component datasheet is here -

Thanks Olaf
Back to Top
Back to Top
layouter88 View Drop Down
Advanced User
Advanced User
Avatar

Joined: 12 Jul 2012
Location: Germany
Status: Offline
Points: 79 		Post Options Post Options   Thanks (0) Thanks(0)   Quote layouter88 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2013 at 3:17am
Hello Olaf,

If you don't want to change this manually, you could use SOT192P210X110-4R (KS-4) from the SM.fpx library, which is a SOT143 with Power Pin on 2

Best Regards,
Erwin
Back to Top
jameshead View Drop Down
Expert User
Expert User
Avatar

Joined: 20 Mar 2012
Location: Oxfordshire, UK
Status: Offline
Points: 576 		Post Options Post Options   Thanks (0) Thanks(0)   Quote jameshead Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2013 at 3:27am
Click the MIRROR button after you've entered the dimensions and select OK.
Back to Top
jameshead View Drop Down
Expert User
Expert User
Avatar

Joined: 20 Mar 2012
Location: Oxfordshire, UK
Status: Offline
Points: 576 		Post Options Post Options   Thanks (0) Thanks(0)   Quote jameshead Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2013 at 3:30am
Oh, and renumber the pins and change the silkscreen & assembly orientation markings afterwards.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2013 at 6:31am
I think you need to "Re-number" the pins first, then "Mirror" the part.

Try it and let us know if you're successful with what you need.

If not, we can fix it to do whatever you need.

Back to Top
O.Mueller View Drop Down
Active User
Active User


Joined: 20 Jan 2013
Status: Offline
Points: 26 		Post Options Post Options   Thanks (0) Thanks(0)   Quote O.Mueller Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2013 at 10:49pm
Hello Tom,

It works with the Renumber and Mirror.

But I must also change to Orientation From Left to Right.

This Orientation Change is not marked in the Library.

When I will do a batch later I must have in mind that the orientation for this component is different.

How we can handle this ?

Thanks Olaf
