I want to rename the padstack, so that it complies with the padstacks we already have in our library.

c45 --> SM Round 0.45

This is changed by the software to "SM Round 0_45"

Is there a restricting on the padstack naming?

Regards,
Charles
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 06 Apr 2017 at 8:11am
You cannot rename pad stacks in the Calculator.

However, you can rename pad stacks in FP Designer.

So, create the part in the Calculator and then move it to FP Designer, rename the pad stacks and save the part to FPX.

Stay connected - follow us! X - LinkedIn
Back to Top
magnus.lictor View Drop Down
Advanced User
Advanced User
Avatar

Joined: 27 Aug 2012
Location: Amsterdam, NL
Status: Offline
Points: 60 		Post Options Post Options   Thanks (0) Thanks(0)   Quote magnus.lictor Quote  Post ReplyReply Direct Link To This Post Posted: 11 Apr 2017 at 11:57pm

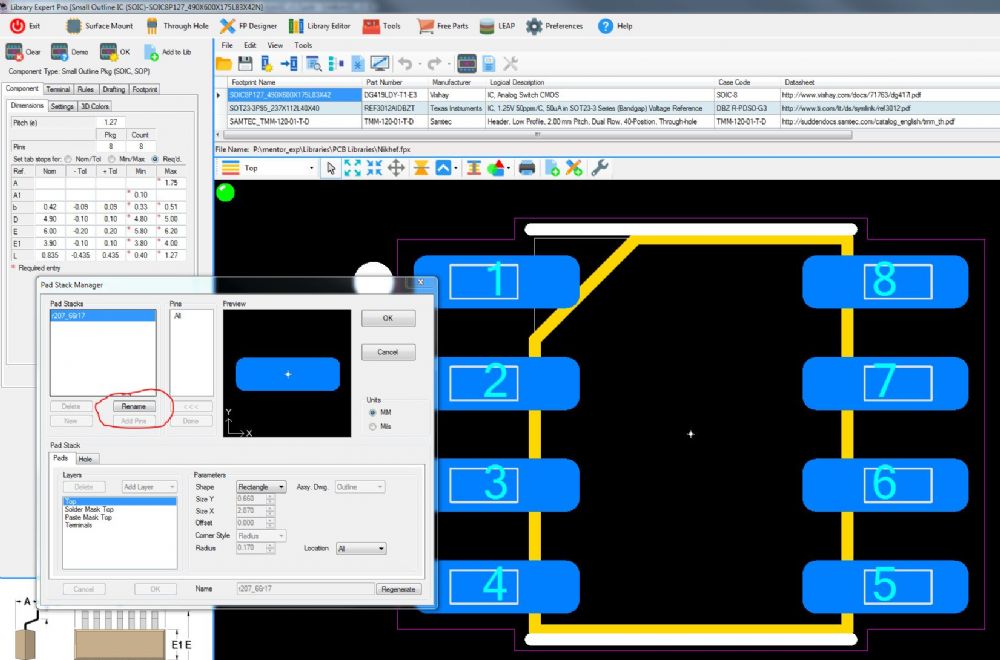

Are you sure?  The button is there.
