    Posted: 27 Mar 2023 at 7:55am

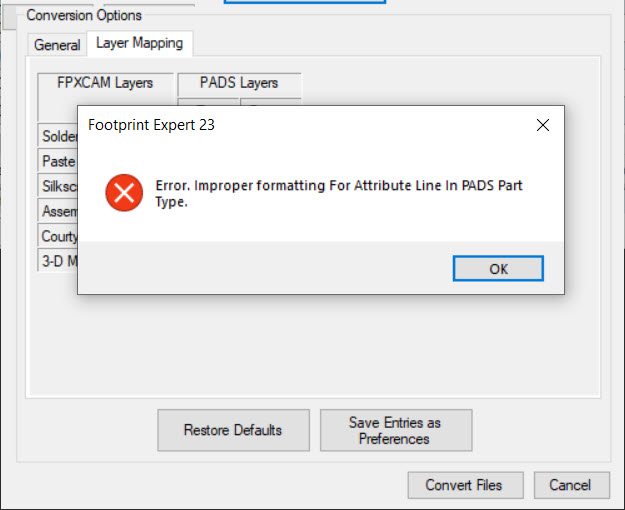

Looking to convert some Mentor - .c .p and .d - files to Allegro - Cadence format? I tired the converter, but the following error came up. Thoughts?


Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2023 at 8:00am
This is easy.

The message indicates the .p (part type) file has attributes that need to be removed.

You can edit this file in Notepad text editor.

Remove all "Gates".

Also, you can send us the files and we'll edit them for you.

Stay connected - follow us! X - LinkedIn
Back to Top
this_is_Gil View Drop Down
New User
New User


Joined: 06 Aug 2020
Status: Offline
Points: 3
Post Options Post Options   Thanks (0) Thanks(0)   Quote this_is_Gil Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2023 at 9:45am
Tom,

Perhaps I'm doing it wrong.

See attached .zip file.uploads/15143/Pads.zip



Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (1) Thanks(1)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2023 at 11:20am
Here is the PADS .p file. Delete the text in Red and change the 4 to 0 in Blue

*PADS-LIBRARY-PART-TYPES-V9*

SML-D12M8WT86 LED_SMLD12_ROM I RES 4 1 0 0
"Copyright" Copyright (C) 2023 Ultra Librarian. All rights reserved.
"Mfr_Name" ROHM Semiconductor
"Manufacturer_Part_Number" SML-D12M8WT86
"Part Number"
GATE 1 2 0
LED
1 0 U 1
2 0 U 2
Stay connected - follow us! X - LinkedIn
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2023 at 11:21am
I moved the thread from Q & A to PADS.

Stay connected - follow us! X - LinkedIn
Back to Top
Livio B View Drop Down
Active User
Active User


Joined: 04 Oct 2016
Status: Offline
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote Livio B Quote  Post ReplyReply Direct Link To This Post Posted: 01 Apr 2023 at 3:57am
If so means that your program does NOT support yet and translate the swapability of the components?
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 01 Apr 2023 at 9:02am
What do you want to swap?

Stay connected - follow us! X - LinkedIn
Back to Top
Livio B View Drop Down
Active User
Active User


Joined: 04 Oct 2016
Status: Offline
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote Livio B Quote  Post ReplyReply Direct Link To This Post Posted: 02 Apr 2023 at 3:38am
If I have a part with gates information with swapabilty info I want preserve that in the translation,
and make possible include that capability in your program to generate gate and pin swap info in the part.

This it is a very lack in the program.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 02 Apr 2023 at 7:54am
Sorry, PCB Libraries, Inc. is a Footprint pattern program and we don't put Swappable Gates in Footprints.

i.e.: we do not support schematic symbols at this time.

Stay connected - follow us! X - LinkedIn
Back to Top
Livio B View Drop Down
Active User
Active User


Joined: 04 Oct 2016
Status: Offline
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote Livio B Quote  Post ReplyReply Direct Link To This Post Posted: 03 Apr 2023 at 6:03am
But if you translate from Pads to another cad and the part has swap info it is good to translate that info also.
Your programmer can add this feature in less of a day. maibe 1 hour.
Ask to Him.
Greetings!
