Pad Stack With Notch

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   In

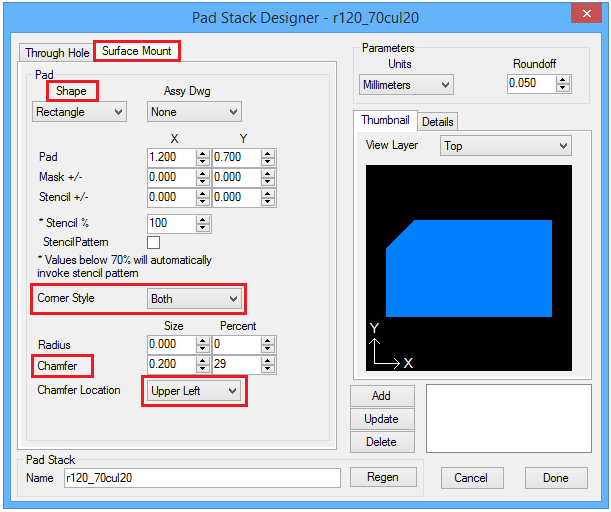

the Pad Stack Designer Select –

Surface Mount
Pad Shape Rectangle
Enter your pad size
length and width
Corner Style “BOTH”
(so that you can also create radius corners on the remaining 3 corners)
Chamfer Size
Chamfer
Location
As far as creating a "Notch" like an "L" shaped pad, FP Designer can not do that yet.

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Nick B Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 02 Jan 2012 Status: Offline Points: 1987	Post Options Post Reply Quote Nick B Report Post Thanks(0) Quote Reply Topic: Pad Stack With Notch Posted: 12 Jan 2014 at 8:51pm
	In the Pad Stack Designer Select – Surface Mount Pad Shape Rectangle Enter your pad size length and width Corner Style “BOTH” (so that you can also create radius corners on the remaining 3 corners) Chamfer Size Chamfer Location As far as creating a "Notch" like an "L" shaped pad, FP Designer can not do that yet.
	Stay connected - follow us! X - LinkedIn



Nick B Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 02 Jan 2012 Status: Offline Points: 1987	Post Options Post Reply Quote Nick B Report Post Thanks(0) Quote Reply Posted: 10 Jan 2014 at 3:13pm
	You can view how to create/define custom padstacks in most of the videos found here: http://www.pcblibraries.com/training
	Stay connected - follow us! X - LinkedIn

Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 6031	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 10 Jan 2014 at 8:53am
	Absolutely! Use the Footprint Designer module to define your custom padstack.
	Stay connected - follow us! X - LinkedIn

rdl86626 Members Profile Send Private Message Find Members Posts Add to Buddy List Advanced User Joined: 20 Jul 2012 Location: Hollister, CA Status: Offline Points: 83	Post Options Post Reply Quote rdl86626 Report Post Thanks(0) Quote Reply Posted: 10 Jan 2014 at 8:29am
	Hi, Is it possible to create a part (say a surface mount cap) with one pad having a notch cut out at one corner?
