Non-Polar Part Still Displays Dot in 3D Step

 Post Reply Post Reply
Author
Message
ChrisChris View Drop Down
Advanced User
Advanced User


Joined: 03 Nov 2021
Status: Offline
Points: 92
Post Options Post Options   Thanks (0) Thanks(0)   Quote ChrisChris Quote  Post ReplyReply Direct Link To This Post Topic: Non-Polar Part Still Displays Dot in 3D Step
    Posted: 20 Feb 2022 at 4:51pm

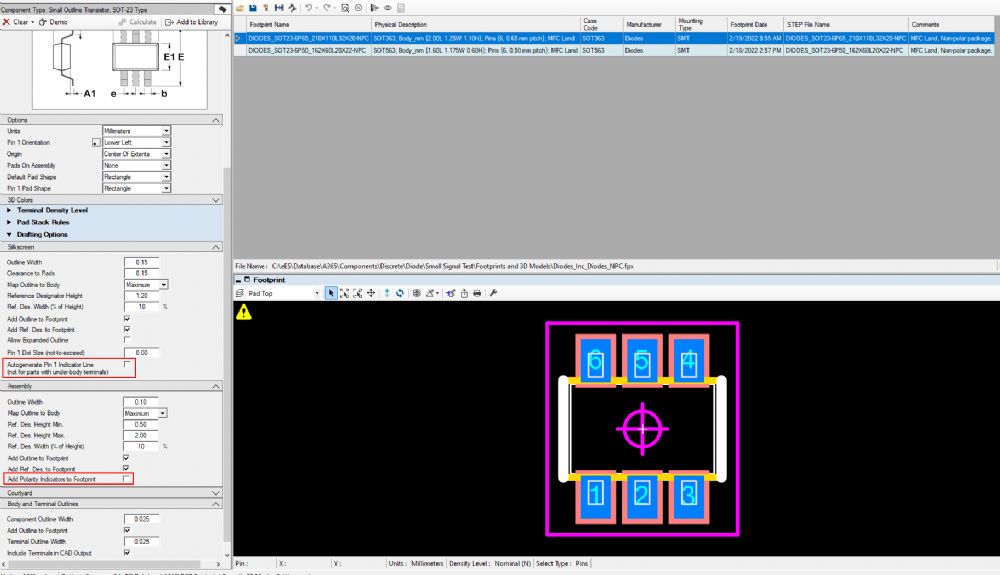

If I build a part using the Calculator with the following settings applied, the silkscreen and assembly drawing are rendered as expected but the 3D-model still includes the pin 1 dot. Do I need to make the 3D model separately using FP Designer in order to remove the dot or is there another option I'm missing somewhere for accomplishing this using the calculator?



Thanks,
Chris


Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 20 Feb 2022 at 5:07pm
Probably.

The dot on the 3D STEP to denote pin 1 like the physical package may indicate Pin 1.

But you can change the Polarity Dot Color in the 3D model by making it the same color as the package body.

All 3D color changes are saved to FPX.

Stay connected - follow us! X - LinkedIn
Back to Top
ChrisChris View Drop Down
Advanced User
Advanced User


Joined: 03 Nov 2021
Status: Offline
Points: 92
Post Options Post Options   Thanks (0) Thanks(0)   Quote ChrisChris Quote  Post ReplyReply Direct Link To This Post Posted: 20 Feb 2022 at 5:15pm
OK, I think the easiest thing to do would be to change the dot color to black. The physical packages in these cases do not indicate pin-1 polarity. At least that's what their datasheets say. Kind of annoying. Diodes Inc has a bunch of these SOT-23-6 parts such that when the diode array is laid out in such a way that the part orientation is a don't care they leave the pin-1 mark off the package. Seems like more trouble/confusion than it's worth. Wish everyone would just keep it simple and specify a polarity marker whether it's needed or not.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 20 Feb 2022 at 5:26pm
Diodes, Inc. is the only component manufacturer that I know that uses the same Case Code for multiple packages.

In this scenario, the SOT-353 is the standard package and SOT353 for the non-standard package. We can't invent Case Codes because there are thousands of POD users that search by Case Code.

In the future, we were planning to have the new PCBPOD website pulling the existing mfr. Case Code into a new part number search to increase the hit ratio.

I don't know if we can do that with Diodes, Inc.
