Naming Convention for TSON-24-1
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
BobMcCr8 View Drop Down
New User
New User
Avatar

Joined: 25 Oct 2012
Location: United States
Status: Offline
Points: 2 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BobMcCr8 Quote  Post ReplyReply Direct Link To This Post Topic: Naming Convention for TSON-24-1
    Posted: 02 Jul 2014 at 9:14am

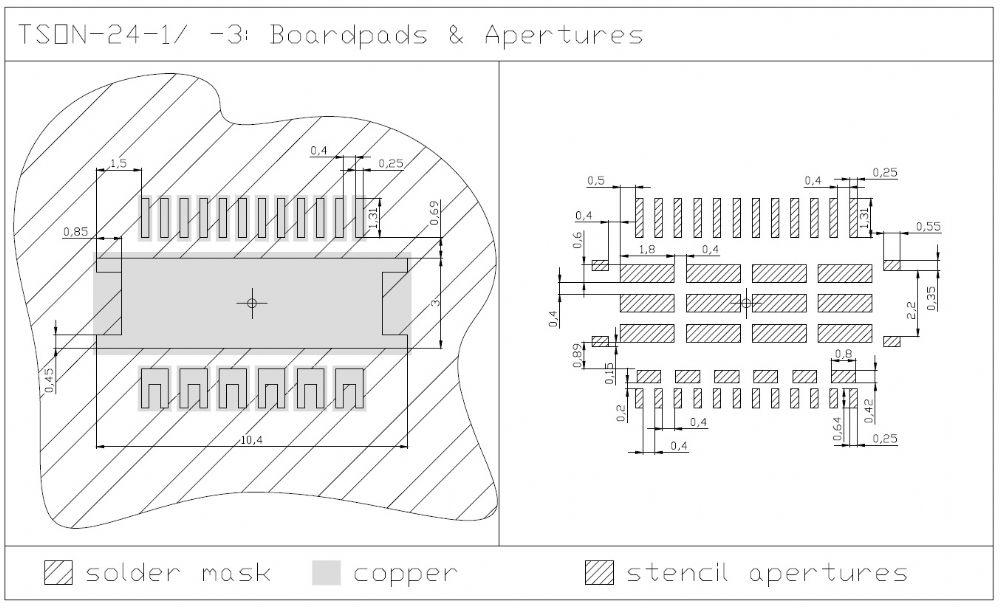

How would you name a footprint like this:
Back to Top
Back to Top
Nick B View Drop Down
Admin Group
Admin Group


Joined: 02 Jan 2012
Status: Offline
Points: 1908 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nick B Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jul 2014 at 10:19am

Our footprint naming convention for non-standard parts is  MANUFACTURER_PartNumber
Stay connected - follow us! X - LinkedIn
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jul 2014 at 10:40am

This would be the perfect footprint for FP Designer.

If you posted the web-link to the mfr. datasheet I will build the footprint and put it on www.pcblibraries.com/pod to share with the global electronics industry. This library part should only be built once by someone and never built again.

Our motto is "Build it once, build it right and never build it again". Stop global duplication of effort and let PCB Libraries build your library parts for you.

The footprint name for this part is: MfrName_MfrPartNumber because it's a unique pattern.

I will introduce this subject at the IPC-7351 standards meeting at IPC headquarters in July so that the next release IPC-7351C will have guidelines for non-standard package footprint names.

Thanks for sharing this.
Stay connected - follow us! X - LinkedIn
Back to Top
Nick B View Drop Down
Admin Group
Admin Group


Joined: 02 Jan 2012
Status: Offline
Points: 1908 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nick B Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jul 2014 at 11:04am

One more thing I'd like to add - the Manufacturer Names we use are located in the latest ManufacturerList.txt file that is included with each build of the Library Expert. We're looking at options to allow users to edit this file (or perhaps a secondary user-defined file) that doesn't get overwritten with new LE versions/updates.
