Naming Convention Example SOT23

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   In the document:Guidelines taken from IPC-7351 Footprint Expert Land Pattern Naming Convention;
the SOT23 naming convention is this:

SOT23 .........SOT23 - Pin Qty. + P Pitch _ Lead Span X Body Height + L Lead Length

but in the SW PCB expert (I'm using the demo version) the example of a SOT23 component (part number REF3318AIDCKT) is the following:

SOT23-3P65_210X110L36X22

I don't understand the meaning of the 4 last digits (36X22)

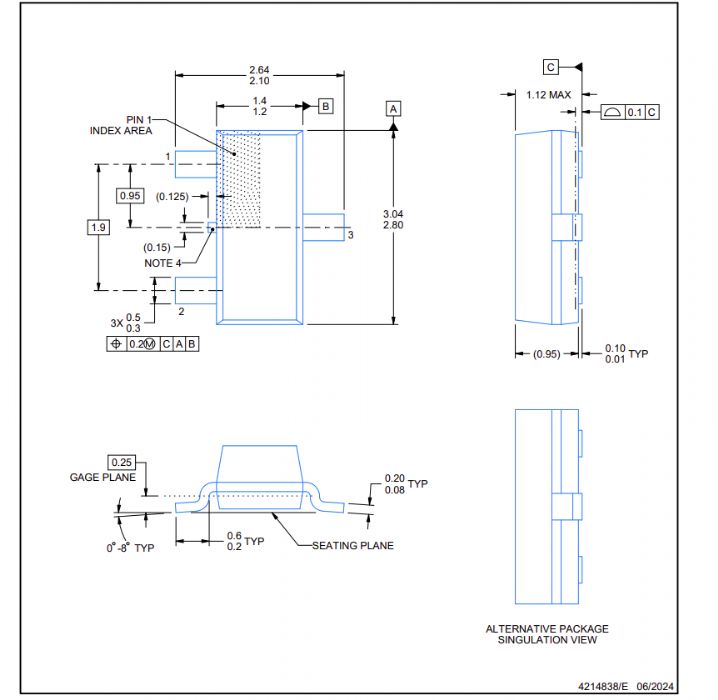

I imagine that 36 takes reference to L Lead Length and 22 to Lead Width, but in the datasheet these two values are different:

Lead Length range is: 0.20 - 0.60
Lead Width range is: 0.30 - 0.50

so I don't understand why in the SW the final digits are (36X22)
I'm missing something or there is other rule for the naming convention that I'm not following?

Best Regards

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
vdamico7 Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 06 Aug 2024 Status: Offline Points: 3	Post Options Post Reply Quote vdamico7 Report Post Thanks(0) Quote Reply Topic: Naming Convention Example SOT23 Posted: 07 Aug 2024 at 1:50am
	In the document: Guidelines taken from IPC-7351 Footprint Expert Land Pattern Naming Convention; the SOT23 naming convention is this: SOT23 .........SOT23 - Pin Qty. + P Pitch _ Lead Span X Body Height + L Lead Length but in the SW PCB expert (I'm using the demo version) the example of a SOT23 component (part number REF3318AIDCKT) is the following: SOT23-3P65_210X110L36X22 I don't understand the meaning of the 4 last digits (36X22) I imagine that 36 takes reference to L Lead Length and 22 to Lead Width, but in the datasheet these two values are different: Lead Length range is: 0.20 - 0.60 Lead Width range is: 0.30 - 0.50 so I don't understand why in the SW the final digits are (36X22) I'm missing something or there is other rule for the naming convention that I'm not following? Best Regards



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 07 Aug 2024 at 7:15am

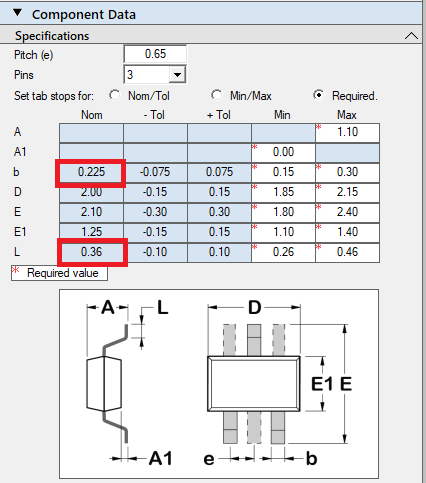

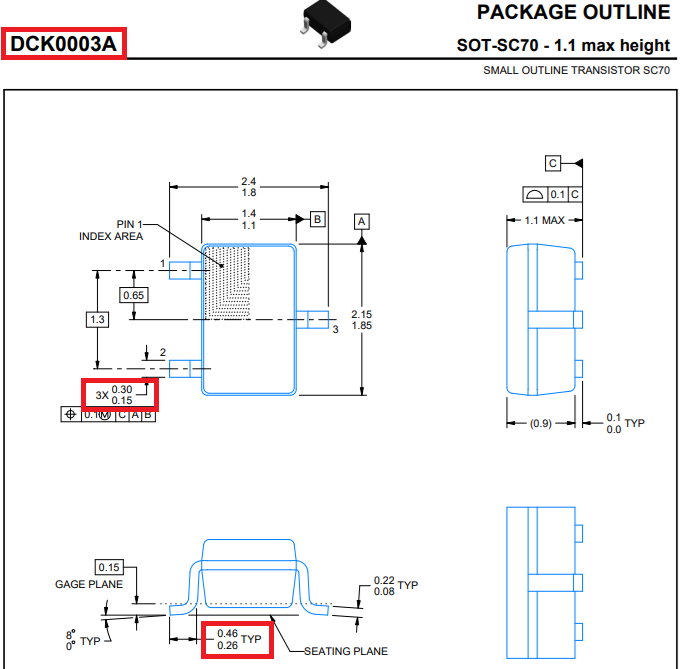

	The L dimensions are Nominal. Here is the datasheet for the TI Case Code DCK0003A
	Stay connected - follow us! X - LinkedIn

vdamico7 Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 06 Aug 2024 Status: Offline Points: 3	Post Options Post Reply Quote vdamico7 Report Post Thanks(0) Quote Reply Posted: 07 Aug 2024 at 8:15am
	Ok ok, the difference is that you are seeing the measures of SOT-SC70 and I'm seeing the measures of SOT-23 in the datasheet. I saw that the PN details, in reality, the REF3318AIDCKT is a SOT-SC70. At first, I saw the SOT-23 indications directly on the datasheet, because the physical description in the SW of the part number indicates an SOT-23. Thanks!!
