Library Expert is Not Creating STEP for CAPMP's |
Post Reply
|
| Author | |
acmenet
Active User
Joined: 23 Oct 2012 Location: UK Status: Offline Points: 40 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: Library Expert is Not Creating STEP for CAPMP'sPosted: 26 Jan 2021 at 6:59am |
|

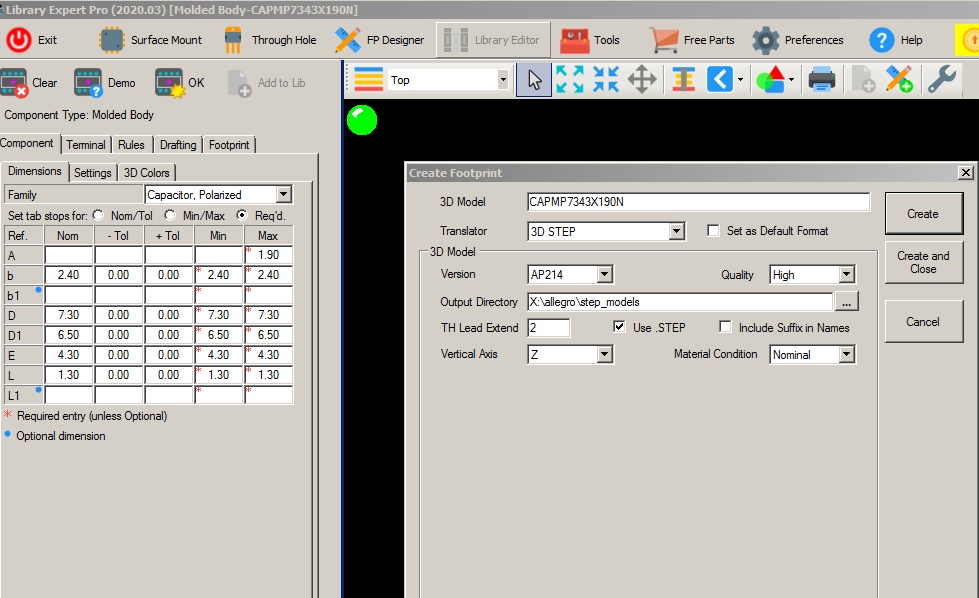

Seem the Molded Polarized Cap will not create a STEP model. It works for normal Molded Capacitors, and Molded Resistors. Using version 20.03. Cheers |
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716 |
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jan 2021 at 9:49am |
|
Can't reproduce the error. Make sure that the "D" dimension is at least 0.70 mm larger than the "D1" dimension (minimum).
 |
|
|
|
|
acmenet
Active User
Joined: 23 Oct 2012 Location: UK Status: Offline Points: 40 |
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jan 2021 at 1:24am |
|
For me still not playing ball, i did have by d1 less than 0.7mm smaller, but still no good creates a non polorized fine with same settings
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716 |
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jan 2021 at 9:25am |
|
We'll fix this in the new V2021 Footprint Expert next week.
There should be a new Beta release of all versions next week so we can test and fix all the features. Thanks! |
|
|
|
|
acmenet
Active User
Joined: 23 Oct 2012 Location: UK Status: Offline Points: 40 |
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jan 2021 at 9:45am |
|
Thanks Tom. Thought i was going mad, when you said it worked for you. Maybe its just the combo i used This feature used to work fine, but tbh i have not created one of these for a while. Look forward to the new release Kind regards |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716 |
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jan 2021 at 10:43am |
|
Both Library and the new Footprint Expert are working OK for me, but we need to reproduce your issue.
We start the process of reviewing bug issues for the new V2021 release the week of February 8, while V2021 is in Beta Release. Once all known bugs are fixed, we will officially release V2021 Footprint Expert. |
|
|
|
|
