How is this type of shape pad designed |
Post Reply
|
| Author | |
shenzw5984
New User
Joined: 06 Aug 2021 Status: Offline Points: 5 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: How is this type of shape pad designedPosted: 10 Aug 2025 at 6:21pm |

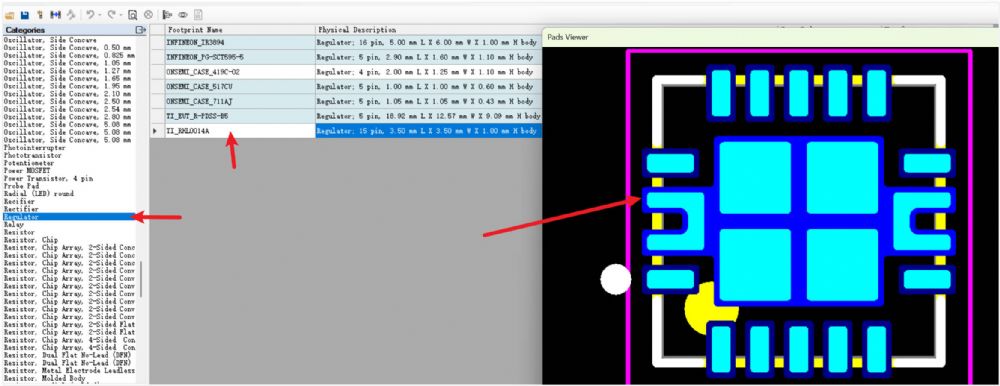

 SM Discrete.fpx >>> TI_RHL0014A For this type, I did not find the population, designed it, nor did I find the corresponding information.
|
|
 |
|
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5949 |
Post Options
Thanks(0)
Quote Reply
Posted: 11 Aug 2025 at 7:35am |
|
We create unique pad shapes in PADS Layout.
Then export the p/d ASCII files and import them into the FPX library row. |
|
|
|
|
