   Hello!
I'm making a footprint for the nRF9151 with FP Calculator. There seems to be some calculation issue with the silkscreen clearance.

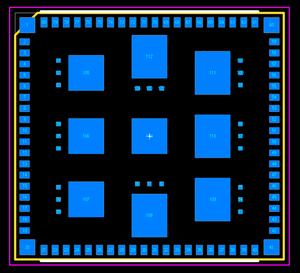

This is the silkscreen with 0.200 mm offset:

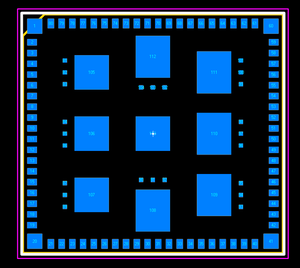

This is with 0.199 mm offset.

The pins are 0.20 mm from the component edges.

Why silkscreen is removed from left and right edges with default settings?

This is done with "v.11, 9/6/2024". Happy to provide further info as needed.

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
kvkoskin Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 02 Dec 2013 Status: Offline Points: 4	Post Options Post Reply Quote kvkoskin Report Post Thanks(0) Quote Reply Topic: FP Calculator Silkscreen Issue Posted: 12 Sep 2024 at 4:15am
	Hello! I'm making a footprint for the nRF9151 with FP Calculator. There seems to be some calculation issue with the silkscreen clearance. This is the silkscreen with 0.200 mm offset: This is with 0.199 mm offset. The pins are 0.20 mm from the component edges. Why silkscreen is removed from left and right edges with default settings? This is done with "v.11, 9/6/2024". Happy to provide further info as needed.
