   Hello,

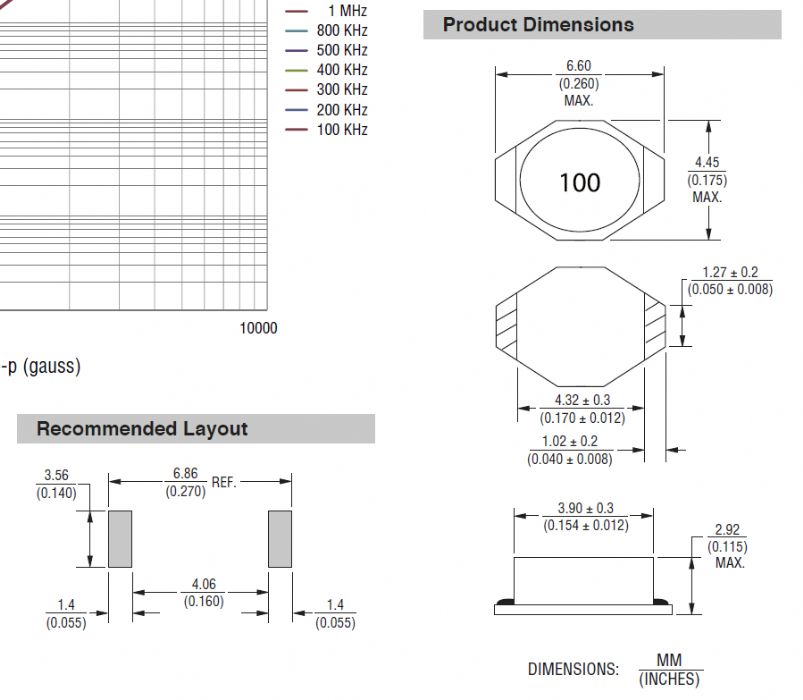

Is there a way to manually draw a custom body shape in FP Designer? I'm unable to find any information on this in the documentation. I'm not sure how to handle the body and 3D STEP for a inductor such as the following:

Thank you,
Chris

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
ChrisChris Members Profile Send Private Message Find Members Posts Add to Buddy List Advanced User Joined: 03 Nov 2021 Status: Offline Points: 92	Post Options Post Reply Quote ChrisChris Report Post Thanks(0) Quote Reply Topic: Custom Component Body Shape in FP Designer Posted: 05 Mar 2022 at 1:07pm
	Hello, Is there a way to manually draw a custom body shape in FP Designer? I'm unable to find any information on this in the documentation. I'm not sure how to handle the body and 3D STEP for a inductor such as the following: Thank you, Chris



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 05 Mar 2022 at 1:37pm
	FP Designer is limited to Round and Rectangle packages and standard pad shapes. Irregular pad shapes require poly shapes attached to a standard pad shape. But we create unique pad shapes and package outlines in a CAD tool and insert that data into an FPX file. We charge $10 each to create the most complex footprints in the industry. Here is an Inductor very similar to the picture you posted that we created for a customer last week. uploads/3/Power_Inductor.zip Footprint Expert users purchase $50 worth of POD credits and use them to order custom footprints that we create and deliver overnight. You can also purchase a POD Subscription for $10 a month ($120 per year) and have access to 4 million parts. Chances are the footprint you are looking for is on POD. If not, order it as a new part request and you're the only one who pays for the footprint. Then if becomes free download for everyone else with a POD subscription. Ordering new footprints helps us build the POD database and saves you time and money.
	Stay connected - follow us! X - LinkedIn

ChrisChris Members Profile Send Private Message Find Members Posts Add to Buddy List Advanced User Joined: 03 Nov 2021 Status: Offline Points: 92	Post Options Post Reply Quote ChrisChris Report Post Thanks(0) Quote Reply Posted: 05 Mar 2022 at 1:40pm
	OK, thanks Tom. I will get these parts via POD then.
