Courtyard Missing from Altium Script - v2015.10
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Luke View Drop Down
Active User
Active User
Avatar

Joined: 24 Jan 2013
Location: Drammen, Norway
Status: Offline
Points: 12 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Luke Quote  Post ReplyReply Direct Link To This Post Topic: Courtyard Missing from Altium Script - v2015.10
    Posted: 24 Apr 2015 at 8:44am
We have the PCB Libraries Expert Pro and just updated to version 2015.10. In this version, we have found that the Build Part function that generates an Altium script no longer generates the court yard outlines! The only thing we are seeing on the eMechanical15 layer is the centroid (cross hairs).

Any classifications or fixes will be appreciated.

Kind Regards,
Luke

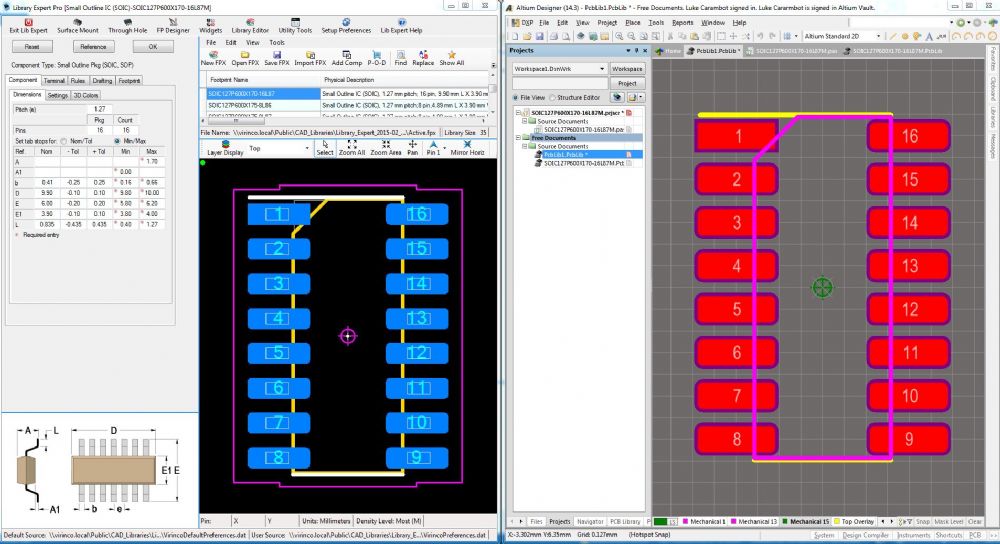

Library Expert along Generated Footprint in Altium

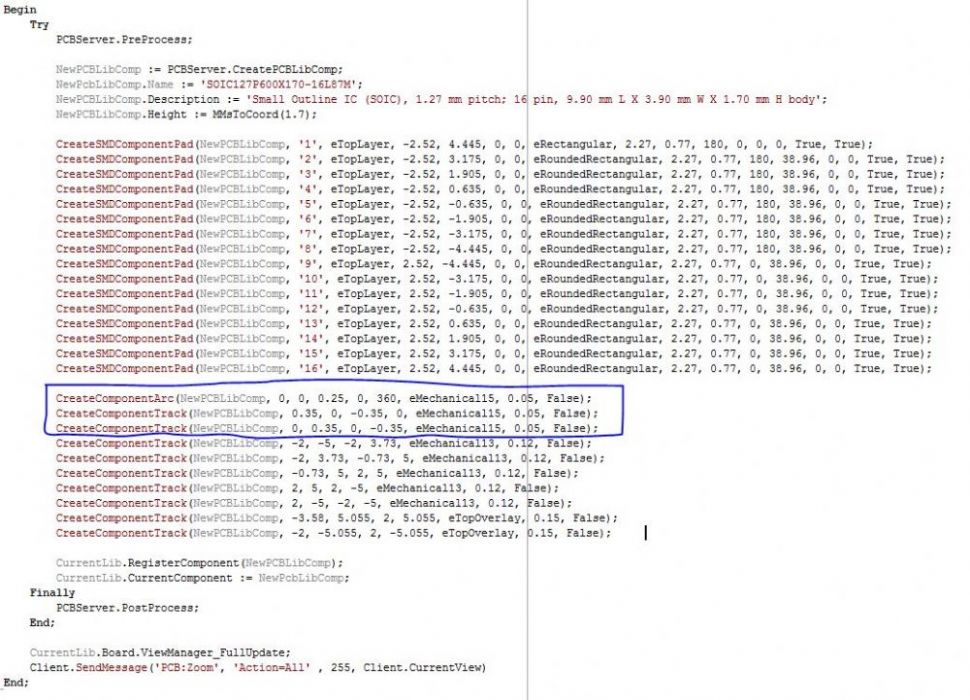

The centroid is the only lines defined on eMechanical15
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5717 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 24 Apr 2015 at 8:58am

This issue has been fixed in the V2015.11 pre-release.

Please download and install V2015.11 pre-release here – www.pcblibraries.com/downloads
