Compact Silkscreen for Miniature Components

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

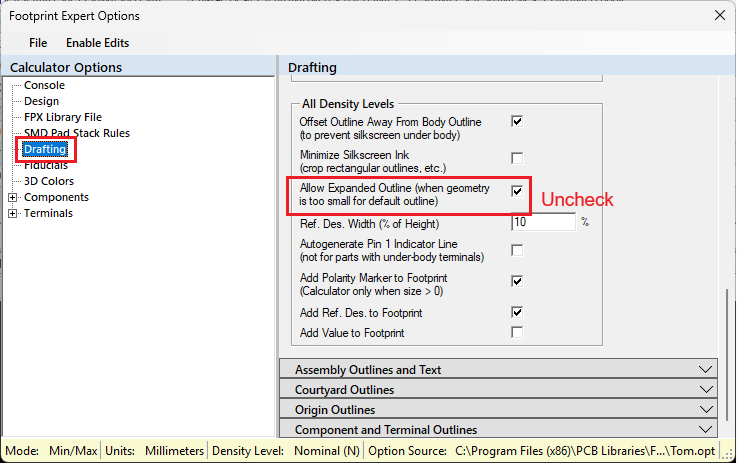

   The Footprint Expert lets you easily modify the silkscreen for miniature components.You can turn off the wraparound silkscreen in 'Tools > Options > Drafting > Silkscreen'

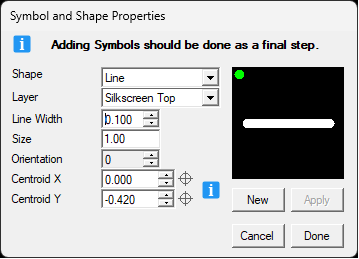

If you need a silkscreen outline you can add Drafting Lines
You set the line shape, width, size, coordinates; put in one line and select 'New' and change the 'Y' to a negative value and Done - add to FPX.

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Nick B Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 02 Jan 2012 Status: Offline Points: 2013	Post Options Post Reply Quote Nick B Report Post Thanks(0) Quote Reply Topic: Compact Silkscreen for Miniature Components Posted: 48 minutes ago at 10:45am
	The Footprint Expert lets you easily modify the silkscreen for miniature components. You can turn off the wraparound silkscreen in 'Tools > Options > Drafting > Silkscreen' If you need a silkscreen outline you can add Drafting Lines You set the line shape, width, size, coordinates; put in one line and select 'New' and change the 'Y' to a negative value and Done - add to FPX.
