   Hi - I loaded Version 2012.50, The Fiducials feature doesn't seem to be working for me under the "Ball Grid Array" section.
I selected comp type "Ball Grid Array". Made sure the "Add fiducials" box was checked. As soon as I enter the first value in the "Pitch" field, the "Add fiducials" box gets uncheck. I then recheck the "Add fiducials" box. Then I entered my corresponding component information and then selected the "OK button". The status turns green, but the finished displayed BGA does not insert the fiducials.

Any assistance in confirming issue with version 2012.50 would be appreciated. Older versions that I used did not have this issue, unfortunately, I do not have a record of how far back to which version I used that didn't have this issue.

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
LMizz Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 07 Jun 2012 Location: USA Status: Offline Points: 3	Post Options Post Reply Quote LMizz Report Post Thanks(0) Quote Reply Topic: BGA Fiducials Deleting Posted: 15 Apr 2013 at 11:11am
	Hi - I loaded Version 2012.50, The Fiducials feature doesn't seem to be working for me under the "Ball Grid Array" section. I selected comp type "Ball Grid Array". Made sure the "Add fiducials" box was checked. As soon as I enter the first value in the "Pitch" field, the "Add fiducials" box gets uncheck. I then recheck the "Add fiducials" box. Then I entered my corresponding component information and then selected the "OK button". The status turns green, but the finished displayed BGA does not insert the fiducials. Any assistance in confirming issue with version 2012.50 would be appreciated. Older versions that I used did not have this issue, unfortunately, I do not have a record of how far back to which version I used that didn't have this issue.



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 15 Apr 2013 at 6:18pm

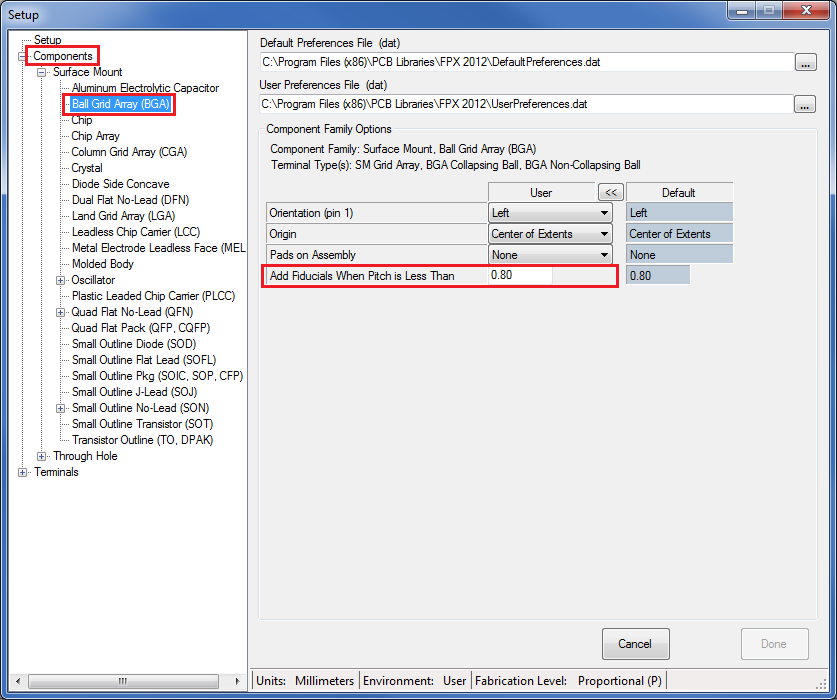

	In the "Full Version" you can permanently change the Local Fiducials in the "Setup > User Preferences > Component > BGA > Add Fiducials When Pitch is Less Than ?" - If you have the "Lite Version" you have to enter all your component package values and then select "Add Fiducials" radio button.

LMizz Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 07 Jun 2012 Location: USA Status: Offline Points: 3	Post Options Post Reply Quote LMizz Report Post Thanks(0) Quote Reply Posted: 16 Apr 2013 at 6:52am
	Hi Tom - I do have the "Full Version" so going in to the preferences as you stated took care of the issue for me. I didn't realize the conditional equation was set to "less than" rather than "less than or equal to". Thanks.
