Allegro TH Non-plated Warning Fix

 Post Reply Post Reply
chrisa_pcb View Drop Down
Moderator Group
Moderator Group

Joined: 29 Jul 2012
Location: San Diego
Status: Offline
Points: 772
Post Options Post Options   Thanks (0) Thanks(0)   Quote chrisa_pcb Quote  Post ReplyReply Direct Link To This Post Topic: Allegro TH Non-plated Warning Fix
    Posted: 06 Sep 2014 at 12:12am

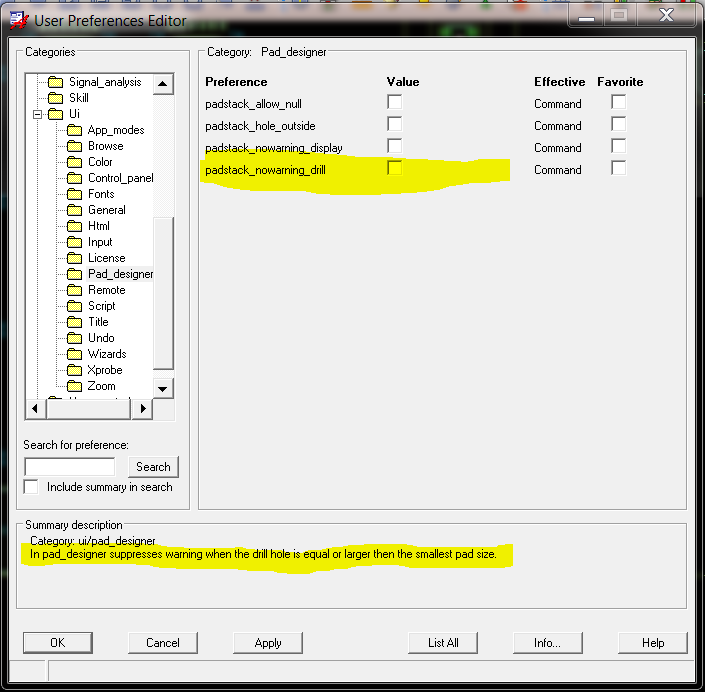

As Allegro/OrCAD PCB users know.. making non-plated padstacks in Allegro/OrCAD PCB can be problematic and throw a warning that must be bypassed for each and every non-plated TH padstack. Courtesy of user DickMS, the below shows how you get to the option in Allegro/OrCAD PCB to suppress it once you go Setup -> User Preferences. The option must be checked to bypass.
