   I set up the prefernces to big the solder mask in the Library expert.
But When I downloaded the FPX file in the POD, I founded solder mask oversize is missing.

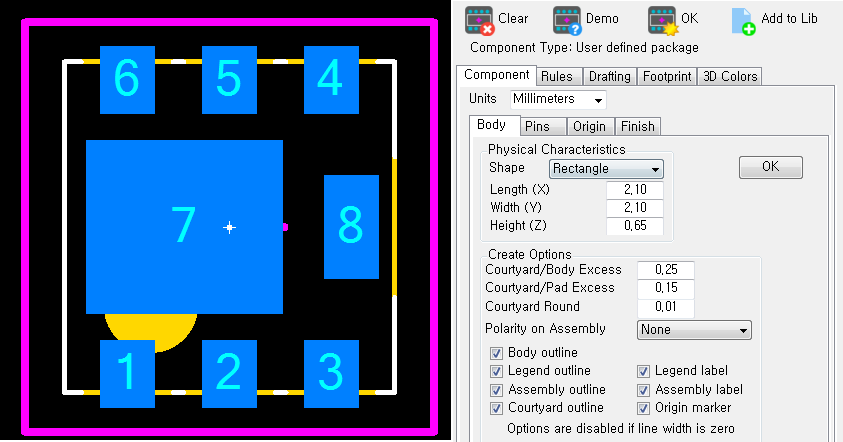

FPX file has two type. one type is made in the suface mount menu.

two type is made in the FP designer.

It seems to be a file made of the FP designer.

Why doesn't it make the solder mask oversize?

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Kenji Members Profile Send Private Message Find Members Posts Add to Buddy List Active User Joined: 23 May 2016 Status: Offline Points: 35	Post Options Post Reply Quote Kenji Report Post Thanks(0) Quote Reply Topic: About the POD file Posted: 07 Sep 2017 at 2:34am
	I set up the prefernces to big the solder mask in the Library expert. But When I downloaded the FPX file in the POD, I founded solder mask oversize is missing. FPX file has two type. one type is made in the suface mount menu. two type is made in the FP designer. It seems to be a file made of the FP designer. Why doesn't it make the solder mask oversize?



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 07 Sep 2017 at 8:18am
	Preferences for Solder Mask only apply to "Standard" Calculator parts. You can fully edit the solder mask swell in FP Designer by using the "Edit Pad Stack" button in the toolbar which opens the "Pad Stack Manager". Then select the Solder Mask layer for each pad stack and change the value to whatever you want. Then re-save the part to your FPX file by selecting the FINISH tab and OK > Add to Lib buttons. Make sure that the entire row in the FPX file is highlighted so that you update that entry and not add a new Row.
	Stay connected - follow us! X - LinkedIn

Kenji Members Profile Send Private Message Find Members Posts Add to Buddy List Active User Joined: 23 May 2016 Status: Offline Points: 35	Post Options Post Reply Quote Kenji Report Post Thanks(0) Quote Reply Posted: 07 Sep 2017 at 10:25pm
	You mean that's the only way?

Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 08 Sep 2017 at 7:01am
	IPC recommends and most of our customers use a 1:1 scale solder mask and allow the fabrication CAM expert auto-swell the solder mask using Valor's Genesis tool. With 1 click of a button and solder mask data is swelled per their manufacturing tolerances. So 1:1 scale solder mask is the Library Expert default. However, some of our customers like to swell the solder mask and we have no idea on how much swell each customer needs. some 0.10, some 0.08, some 0.075, some 0.05. So you must change the pad stack solder mask swell to whatever your company standard is.
	Stay connected - follow us! X - LinkedIn

Kenji Members Profile Send Private Message Find Members Posts Add to Buddy List Active User Joined: 23 May 2016 Status: Offline Points: 35	Post Options Post Reply Quote Kenji Report Post Thanks(0) Quote Reply Posted: 10 Sep 2017 at 7:20pm
	ok. I got it. Thank you
