3D STEP: Pin 1 color for headers, receptacle

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   Hello,
In Footprint Expert, I love the possibility to use a dedicated 3D color for pin 1, in particular for headers. But I think this feature could be improved a little...

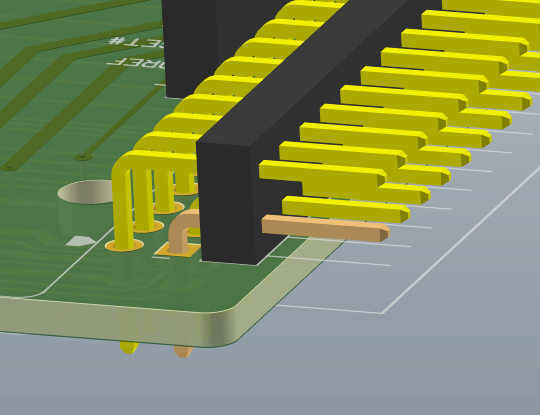

Here is what a "HDR" part looks like with my config:

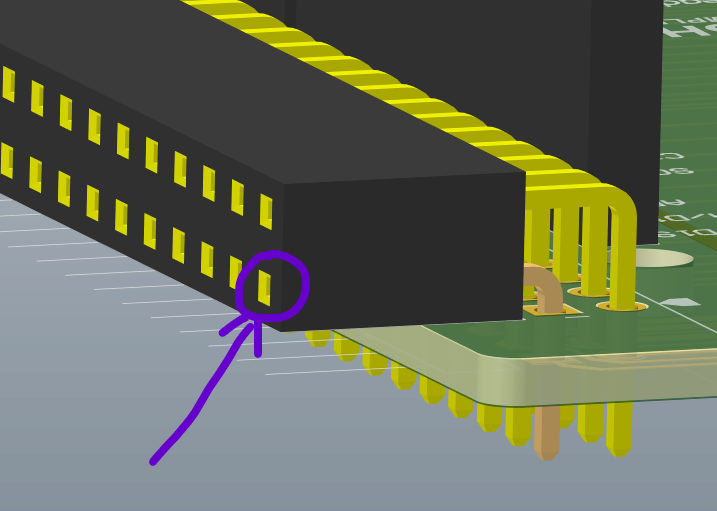

And now a "RHDR" part:

Could we think about an improved version in which the inner pin 1 of a receptacle also takes the specific "Pin 1 color"? This would be very handy to ensure the correct matching of pins in case of mating connectors.

Thanks!
Justin

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
zentekfr Members Profile Send Private Message Find Members Posts Add to Buddy List Advanced User Joined: 04 Jan 2022 Status: Offline Points: 83	Post Options Post Reply Quote zentekfr Report Post Thanks(0) Quote Reply Topic: 3D STEP: Pin 1 color for headers, receptacle Posted: 27 Feb 2024 at 2:39pm
	Hello, In Footprint Expert, I love the possibility to use a dedicated 3D color for pin 1, in particular for headers. But I think this feature could be improved a little... Here is what a "HDR" part looks like with my config: And now a "RHDR" part: Could we think about an improved version in which the inner pin 1 of a receptacle also takes the specific "Pin 1 color"? This would be very handy to ensure the correct matching of pins in case of mating connectors. Thanks! Justin



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 27 Feb 2024 at 6:17pm
	The way the master 3D STEP models were created make it impossible to make both the Terminal and the Receptacle hole a different color. The Receptacle hole was created as an extruded cut. The Terminal Leads were created differently. The lead starts on the face of the body. But we'll take a look at it.
