 Topic: 3D Options: Material ConditionPosted: 09 Jan 2023 at 2:26am |
|
Hi to all,

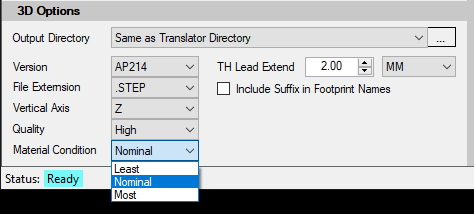

I cannot understand very well the meaning of the parameter Material condition (Least, Nominal, Most). Which is the meaning of it? Which is the difference?  Is there any relation with the Density Level of the footprint created? I mean, if I am creating a footprint with Most material condition should I choose the 3D Material condition as Most? Regards, david
|
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5747 |
Post Options
Thanks(0)
Quote Reply
Posted: 09 Jan 2023 at 9:42am |
|

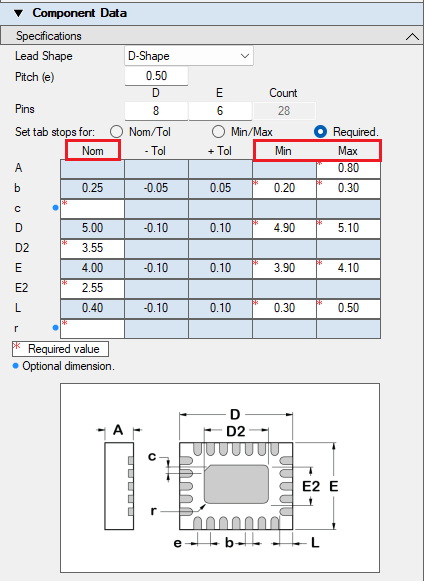

There are 3 columns of dimensional data in the Footprint Expert component family calculators.
Nom / Min / Max and when you select a Material Condition, the 3D STEP output will use the column of data that you select. The default setting is "Nominal" material condition.  |
|
|
|
|
dramos
Advanced User
Joined: 18 Feb 2021 Status: Offline Points: 63 |
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jan 2023 at 12:12am |
|
Dear Tom,
Many thanks for your fast answer. Regards, David
|
|
|
|
|
boardrouter
New User
Joined: 13 Oct 2022 Status: Offline Points: 1 |
Post Options
Thanks(0)
Quote Reply
Posted: 10 Feb 2023 at 8:57am |
|
These refer to the +/- tolerance of the feature:
Least = the minimum dimension Nominal = the midpoint between least and most Most = the maximum dimension Example 1 (symmetrical tolerance): 3.57 +/-0.10 Least= 3.47 Nominal= 3.57 Most= 3.67 Example 2 (asymmetrical tolerance): 3.67 +0.000/-0.20 Least= 3.47 Nominal= 3.57 Most= 3.67 Typically the nominal value is the stated dimension where the + and the - tolerances are equal, as in Example 1. |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5747 |
Post Options
Thanks(0)
Quote Reply
Posted: 10 Feb 2023 at 11:49am |
|
The Nominal density level is the most popular in the commercial industry.
Military weapons contractors seem to use the Maximum density level for 3D models. Least is never used by anyone. |
|
|
|
|
