2D Line Assembly Pads |
Post Reply
|
| Author | |
AGONZ67
Committee
Joined: 30 Mar 2012 Status: Offline Points: 122 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: 2D Line Assembly PadsPosted: 08 Jan 2016 at 2:46pm |
|
When did BGA pads on assembly become 2D Lines? What is the purpose? |
|
 |
|
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 6070 |
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jan 2016 at 6:08pm |
|
I believe all "Pads on Assembly" are 2D-Lines. It's for an assembly drawing. What other option is there? |
|
|
|
|
AGONZ67
Committee
Joined: 30 Mar 2012 Status: Offline Points: 122 |
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jan 2016 at 10:25am |
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 6070 |
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jan 2016 at 1:40pm |
|

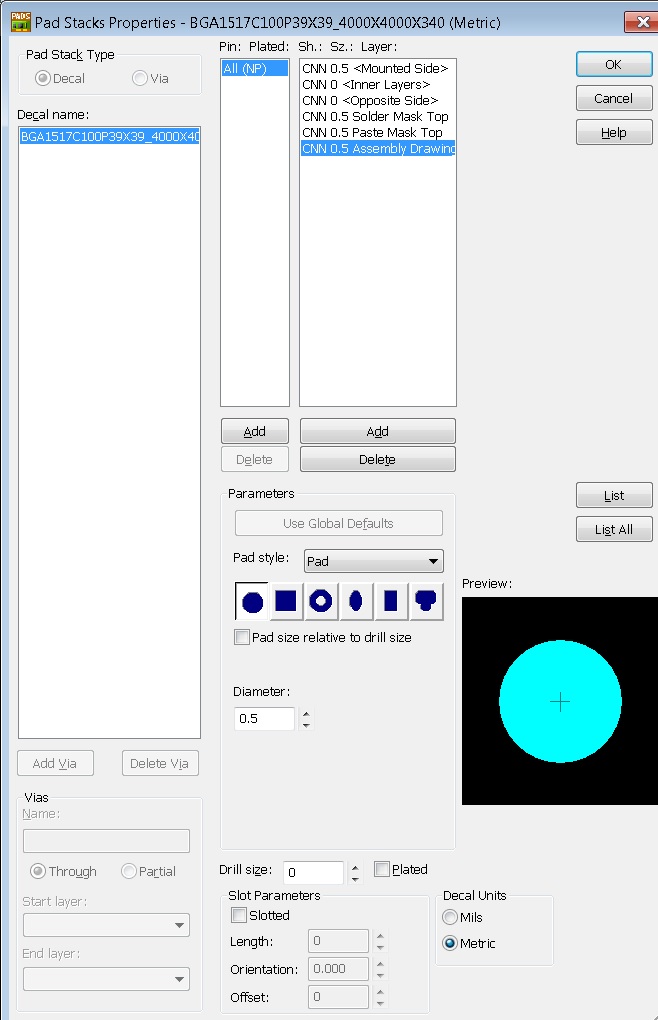

PADS Layout has the ability to put the Assembly Layers in the Pad Stack. This is not true for every CAD tool and we needed a solution for every CAD tool. Also, with 2D-Lines you have the option of "Outline" and "Filled" and you can't do that with a pad stack. You have controls over which component family gets Pads on Assembly. This is because there is a Assembly Ref Des that goes inside the closed polygon and you only want both if the part is big to make room for both. I will ask the programmers if they can add Pads to Assembly in the pad stack for PADS Layout. |
|
|
|
|
