 Topic: Wrong generation of Pastе Masks in script for AltPosted: 08 Apr 2019 at 4:02am |
|
Wrong generation of Pastе Masks in script for Altium

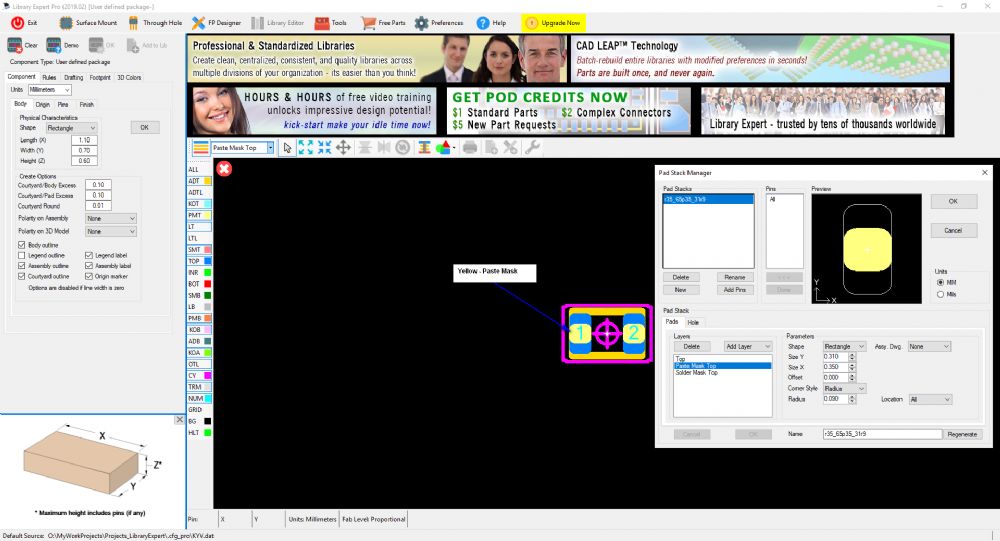

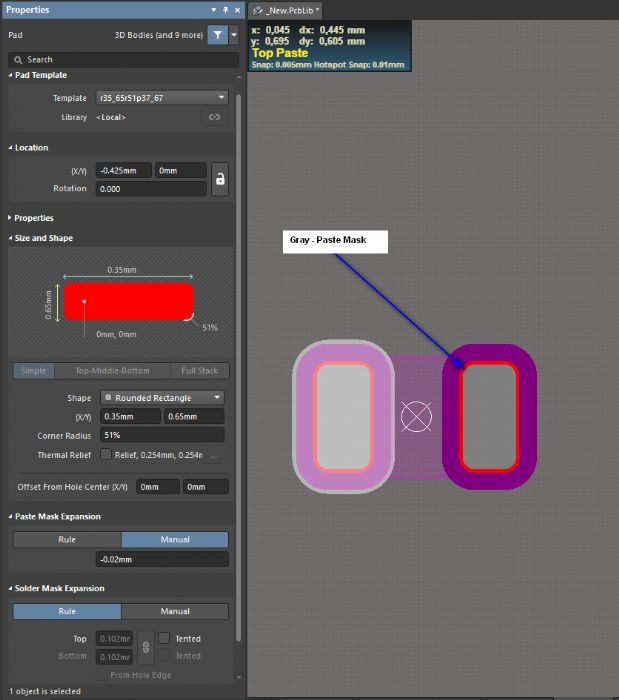

Pastе Mask in Library Expert Pro 2019.02:  Pastе Mask in Altium Designer v19.0.14 (after run script generated by Library Expert):  script generated by Library Expert: where is the error, what is done wrong?
|
|
 |
|
|
|
|
kyv4ua
New User
Joined: 08 Apr 2019 Status: Offline Points: 7 |
Post Options
Thanks(0)
Quote Reply
Posted: 08 Apr 2019 at 4:34am |
|

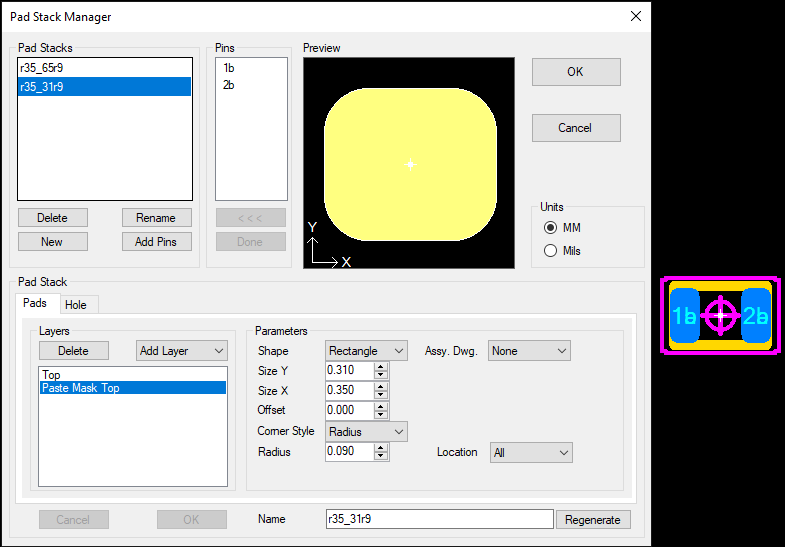

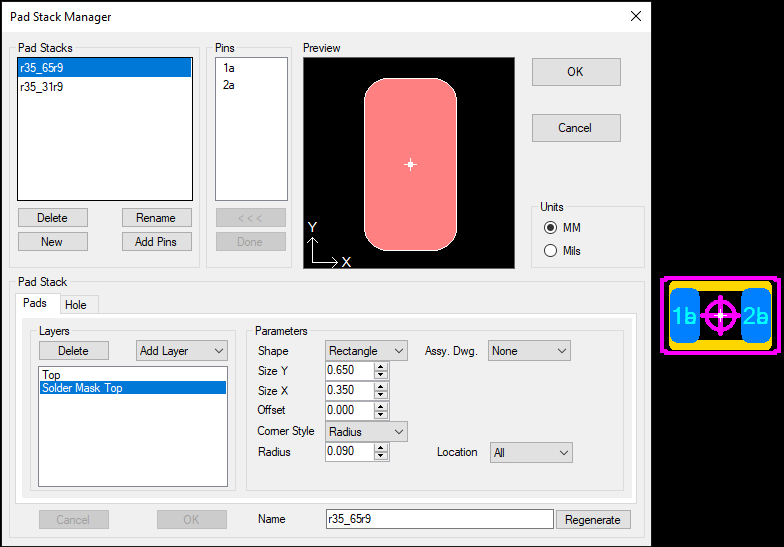

I solved the problem by creating two pads per pin:
Solder_Pad Paste_Pad
|
|
|
|
|
kyv4ua
New User
Joined: 08 Apr 2019 Status: Offline Points: 7 |
Post Options
Thanks(0)
Quote Reply
Posted: 09 Apr 2019 at 5:27am |
|
Solder_Pad
 Paste_Pad  |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716 |
Post Options
Thanks(0)
Quote Reply
Posted: 09 Apr 2019 at 7:57am |
|
Can you please post the URL datasheet link for this component package?
We can't reproduce the problem and you seem to be using FP Designer incorrectly. |
|
|
|
|
kyv4ua
New User
Joined: 08 Apr 2019 Status: Offline Points: 7 |
Post Options
Thanks(0)
Quote Reply

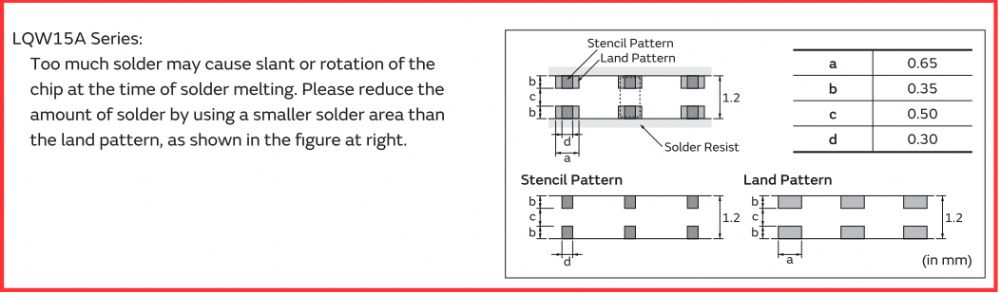

Posted: 11 Apr 2019 at 5:35am |
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716 |
Post Options
Thanks(0)
Quote Reply
Posted: 11 Apr 2019 at 8:25am |
|

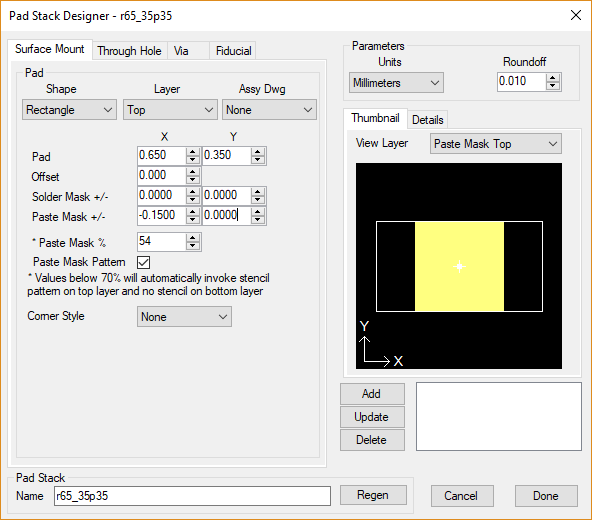

In the Pad Stack Designer:
 |
|
|
|
|
kyv4ua
New User
Joined: 08 Apr 2019 Status: Offline Points: 7 |
Post Options
Thanks(0)
Quote Reply
Posted: 11 Apr 2019 at 8:52am |

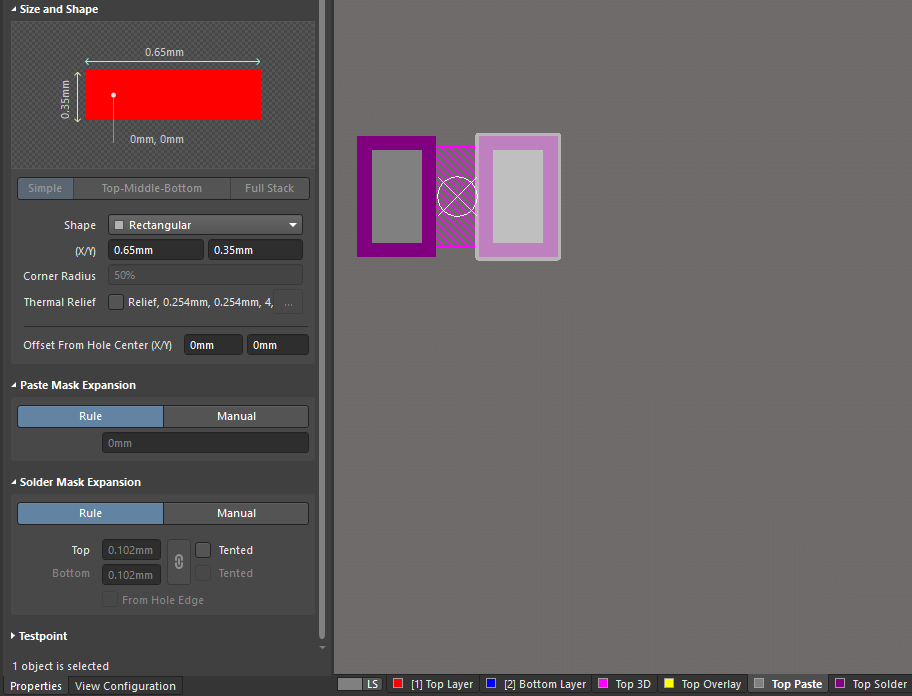

Altium can not cut the mask separately the "x" and "y" axis
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716 |
Post Options
Thanks(0)
Quote Reply
Posted: 11 Apr 2019 at 9:21am |
|
Oh, it's a limitation in Altium where the paste must be the same annular ring and therefore you cannot achieve the mfr. recommended paste mask solution.
You must manually place the correct mfr. recommended paste mask by adding poly-regions on the paste mask layer. We'll have to contact Altium and alert them of this issue, because most other CAD tools do not act this way. I tested this in Altium V19 and it does not work as intended. It's an Altium issue that they must resolve. |
|
|
|
|
