 Topic: TolerancePosted: 11 Apr 2018 at 8:52am |
|
Hello,

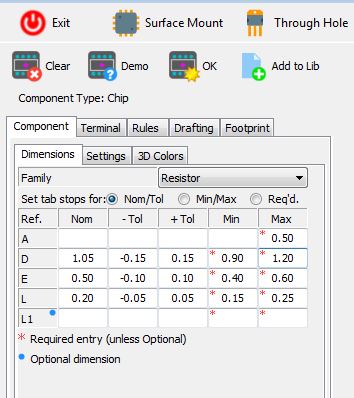

Why i can't generate footprint with tolerance not equal plus and minus and when i add values as example below it change automatically As example D = 1 - 0.1 +0.2 ? to be 1.05 +/- 0.15 Also How can i generate footprint for package SOT-89 it found in reference but i can't found in tool  |
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716 |
Post Options
Thanks(0)
Quote Reply
Posted: 11 Apr 2018 at 10:54am |
|
When you have different +/- tolerances, enter the Min/Max data instead of Nominal + Tolerance.
When you enter the Min/Max data, a new Nominal dimension will be auto generated. The Nominal = the value between the Minimum and Maximum. This will also affect the Footprint Name, which uses the Nominal dimensions. |
|
|
|
|
Batiskaff
Advanced User
Joined: 30 Apr 2018 Status: Offline Points: 65 |
Post Options
Thanks(0)
Quote Reply
Posted: 30 Apr 2018 at 4:50am |
+1 good question. How to сreate SOT-89? |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716 |
Post Options
Thanks(0)
Quote Reply
Posted: 30 Apr 2018 at 7:29am |
|
SOT-89 has an irregular shape pin 2 and it's a different shape and size for every mfr.
Library Expert cannot auto-generate irregular pad shapes yet as this requires associated copper poly shapes. We manually create SOT-89 and upload them to POD. Check the mfr.'s Diodes and NXP for the Case Code SOT89 or SOT-89 and download those parts. If you have a new SOT-89, we'll be glad to build it for $5 and share it with everyone else for free download. |
|
|
|
|
