Thermal Relief in Pads Using FP Designer
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
David Walker View Drop Down
New User
New User
Avatar

Joined: 19 Mar 2013
Status: Offline
Points: 3 		Post Options Post Options   Thanks (0) Thanks(0)   Quote David Walker Quote  Post ReplyReply Direct Link To This Post Topic: Thermal Relief in Pads Using FP Designer
    Posted: 27 Jan 2015 at 2:08pm

I'm trying to build a through-hole part using the FP Designer, and the pad stacks it creates do not have thermal reliefs.

Is there something special I have to do to accomplish this?

I just upgraded from 2013 to 2015, and 2013 did create the thermal pad stacks.

I must be missing something stupid.

David Walker
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5717 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jan 2015 at 2:31pm
In FP Designer you create pad stacks in the "Pad Stack Designer".

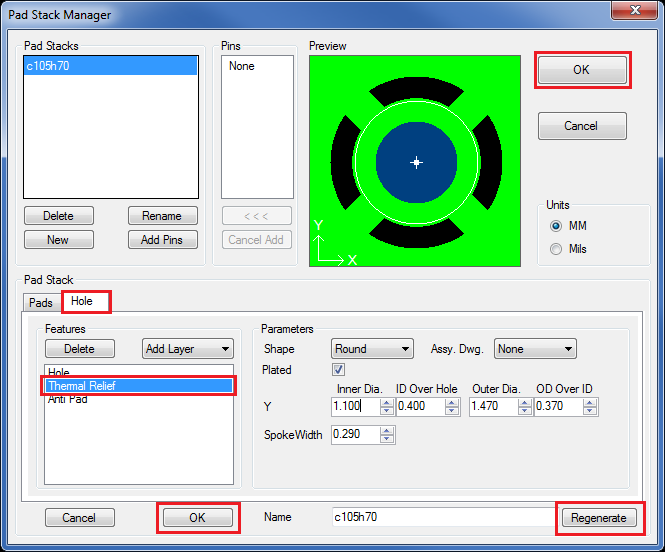

Then when you select "Done" the program opens the "Pad Stack Manager".

In the Pad Stack Manager, select the pad stack in the list and you can edit the Top, Inner and Bottom pad sizes and the Solder Mask size.

Select the "Hole" tab to edit the Thermal Relief and Anti-pad features.

Select the "OK" button on the bottom to regenerate the pad stack name.

Select the "OK" in the upper right corner to close the Pad Stack Manager.
Stay connected - follow us! X - LinkedIn
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5717 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jan 2015 at 9:15am

We discovered an issue with "Slotted Hole" Thermal Relief for the Allegro interface.

The bug has been validated and fixed in the V2015.08 pre-release which will be available soon.


Stay connected - follow us! X - LinkedIn
Back to Top
Glen.Chen View Drop Down
New User
New User


Joined: 22 Jan 2015
Status: Offline
Points: 7 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Glen.Chen Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jan 2015 at 11:40pm

Hi Tom,

I cannot turn out in the Allegro of the Thermal Relief.

What happens then?

Thank you!!
Glen Chen
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5717 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jan 2015 at 1:04pm

All Allegro interface issues were fixed in the V2015.08 pre-release available here - www.pcblibraries.com/downloads


Stay connected - follow us! X - LinkedIn
Back to Top
David Walker View Drop Down
New User
New User
Avatar

Joined: 19 Mar 2013
Status: Offline
Points: 3 		Post Options Post Options   Thanks (0) Thanks(0)   Quote David Walker Quote  Post ReplyReply Direct Link To This Post Posted: 10 Sep 2015 at 10:32am
This issue does not seem to be resolved for Allegro.

Whatever I do, I can't generate padstacks with thermal relief's.

After I create each part, I have to manually update the padstack to include the thermal relief.

I beleive this is true for every through-hole part.

I tried generating a vertical through-hole header, clicked on "Reference", and built the part.

No thermals.

Is there a setting somewhere to enable thermal pad generation?
Back to Top
chrisa_pcb View Drop Down
Moderator Group
Moderator Group
Avatar

Joined: 29 Jul 2012
Location: San Diego
Status: Offline
Points: 772 		Post Options Post Options   Thanks (0) Thanks(0)   Quote chrisa_pcb Quote  Post ReplyReply Direct Link To This Post Posted: 10 Sep 2015 at 10:46am
Are you using the latest version of the LE software? It should be V2015.17.

Also.. send me your email by PM and we'll work the issue.
Back to Top
