How Can I Toggle Pin Number From Alpha To Numeric? |
Post Reply
|
| Author | |
Glen.Chen
New User
Joined: 22 Jan 2015 Status: Offline Points: 7 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: How Can I Toggle Pin Number From Alpha To Numeric?Posted: 03 Mar 2015 at 12:49am |
|
I can not update the pin number，How does it work？？
|
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5717 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Mar 2015 at 7:39am |
|
If you select a pad and Right Mouse Button select "Numeric Pins".
You can toggle back and forth between Alpha and Numeric pin names. |
|
|
|
|
Glen.Chen
New User
Joined: 22 Jan 2015 Status: Offline Points: 7 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Mar 2015 at 7:13pm |
|

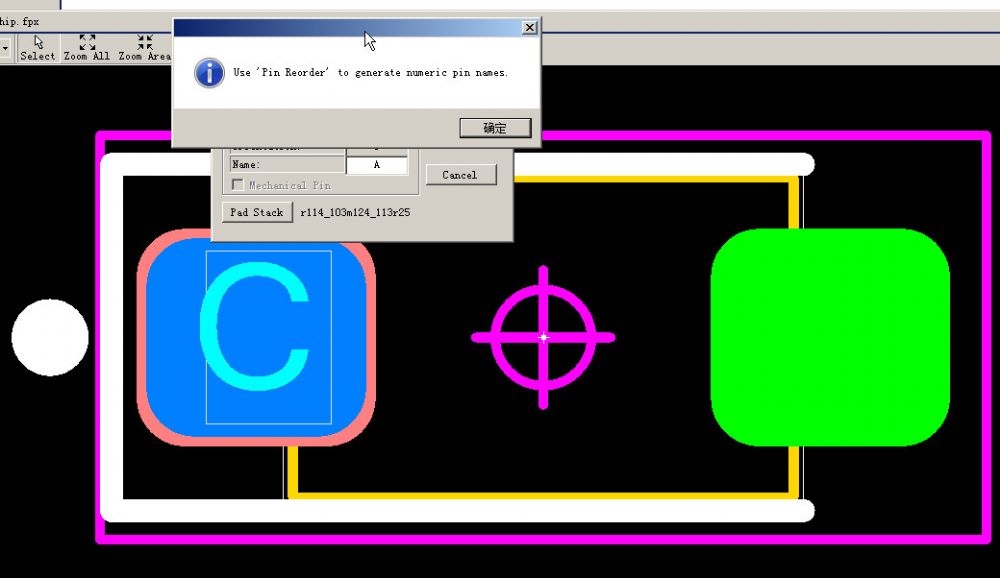

Hi Tom,
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5717 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Mar 2015 at 8:05pm |
|
I forwarded your feature request to the software programmers.
|
|
|
|
|
Glen.Chen
New User
Joined: 22 Jan 2015 Status: Offline Points: 7 |
Post Options
Thanks(0)
Quote Reply
Posted: 05 Mar 2015 at 6:41pm |
|

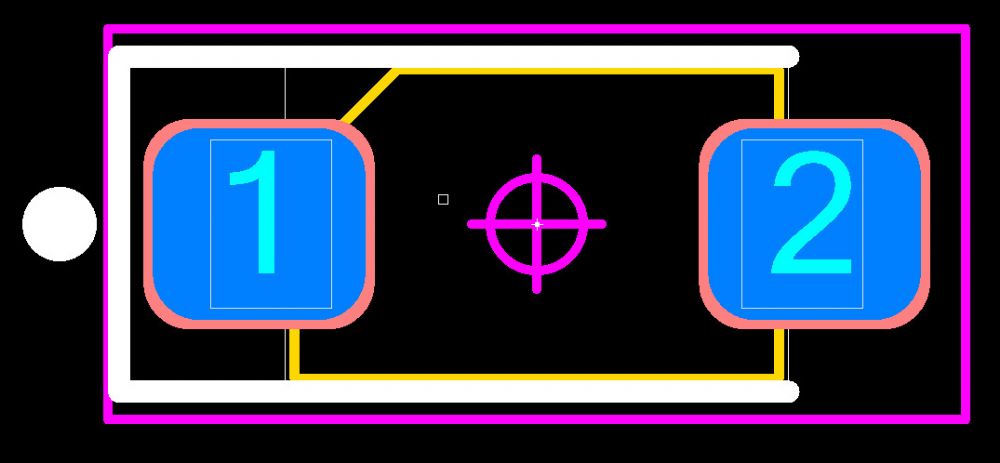

Hi Tom，
There are the results please tell me, thank you！！！ |
|
|
|
|
Glen.Chen
New User
Joined: 22 Jan 2015 Status: Offline Points: 7 |
Post Options
Thanks(0)
Quote Reply
Posted: 05 Mar 2015 at 6:51pm |
|
Hi Tom,

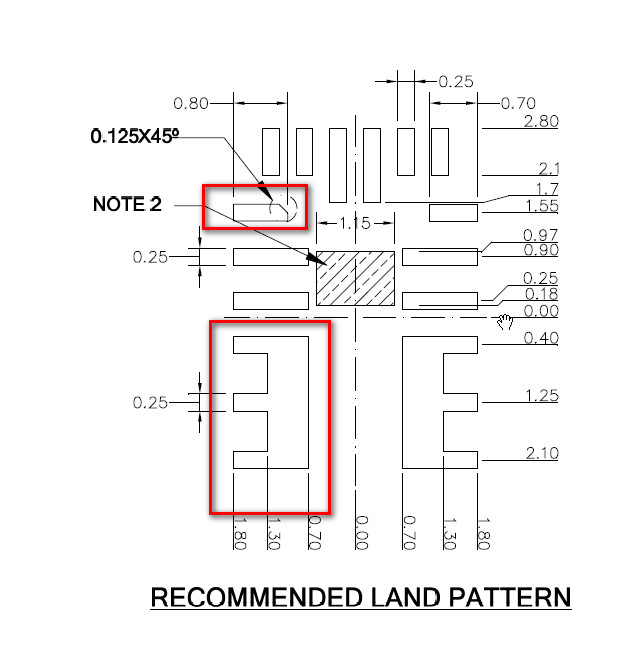

How do I establish the following two irregular pad? thank you！！！  |
|
|
|
|
Glen.Chen
New User
Joined: 22 Jan 2015 Status: Offline Points: 7 |
Post Options
Thanks(0)
Quote Reply
Posted: 05 Mar 2015 at 7:08pm |
|
Hi Tom,
Sorry,I found a chamfered rectangle  But the kind of pad below how to build it？It is divided into four pad to do it? However, only three number or customer number only took one how does it work? thank you!!! |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5717 |
Post Options
Thanks(0)
Quote Reply
Posted: 05 Mar 2015 at 9:42pm |
|
You cannot create that footprint in Library Expert.
But we can build it and sell it to you and everyone else for $2. We would create the pads, pin names, solder mask, paste mask, silkscreen and everything else once and do it right and never do it again and no one on this planet would ever have to spend any time creating this library part again. We are definitely pro-productive and elimination of duplication. Use www.pcblibraries.com/POD and enter the mfr. name and part number and if it doesn't exist yet, Request it and it will be created and shared with the global electronics industry. You will get an email when the part is ready for download. We can't make it any easier than that. |
|
|
|
|
