Gang Mask Applied on SC-75A
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
dramos View Drop Down
Advanced User
Advanced User


Joined: 18 Feb 2021
Status: Offline
Points: 61 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dramos Quote  Post ReplyReply Direct Link To This Post Topic: Gang Mask Applied on SC-75A
    Posted: 22 Mar 2022 at 7:02am
Hi to all,

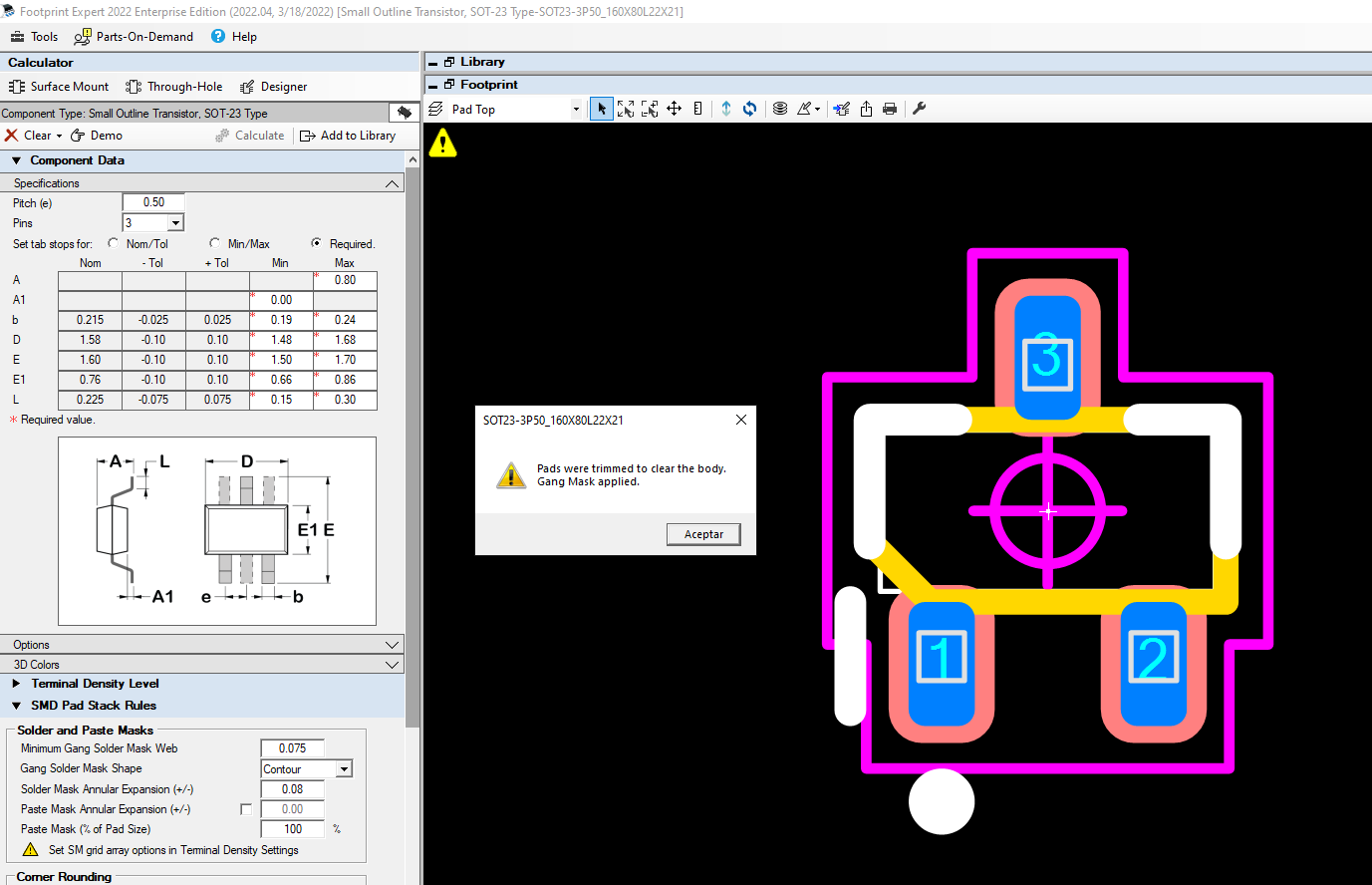

I updated to PCBL 2022.04 and when I created a footprint for a small transistor (Vishay-SI1012CR)

I got the next message:
- Pads were trimmed to clear the body.
- Gang Mask Applied

I understood the message because the height A1(the min distance from the body to the pcb) was 0.0

I need help with the second message because I do not understand it... why?

I tried to attach a pic of it...


Thanks for you time and help.

Regards,
dramos
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2022 at 8:32am
Gang Mask is when you violate the minimum solder web rule.

You can change this in "File > Options > SMD Pad Stack Rules > Minimum Gang Solder Mask Web > 0.075".

By changing this value to 0.00 you turn off the feature.
Stay connected - follow us! X - LinkedIn
Back to Top
dramos View Drop Down
Advanced User
Advanced User


Joined: 18 Feb 2021
Status: Offline
Points: 61 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dramos Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2022 at 9:16am
Hi Tom,

Firstly thanks for your fast answer. Smile

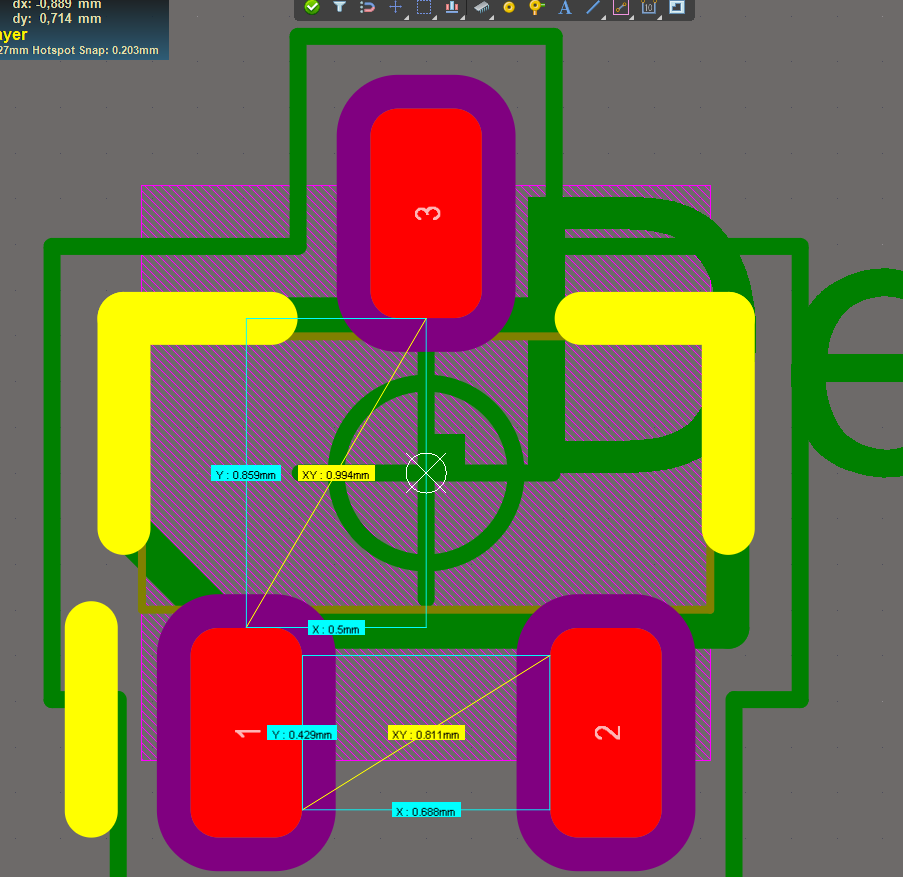

But I think that I haven't violate any rule....

Anyway thanks for your time and help

Best regards,
dramos
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2022 at 10:10am
You are correct. The error message should not say "Gang Mask Applied".

This is a bug, and we'll fix it in the next V2022.05 pre-release.
Stay connected - follow us! X - LinkedIn
Back to Top
Jeff.M View Drop Down
Admin Group
Admin Group


Joined: 16 May 2012
Location: San Diego
Status: Offline
Points: 477 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jeff.M Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2022 at 2:49pm
Have you got a data sheet link to this part?
Stay connected - follow us! Twitter - LinkedIn
Back to Top
Jeff.M View Drop Down
Admin Group
Admin Group


Joined: 16 May 2012
Location: San Diego
Status: Offline
Points: 477 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jeff.M Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2022 at 3:25pm
Never mind.  Found a datasheet.  Problem fixed in next release.
Stay connected - follow us! Twitter - LinkedIn
Back to Top
dramos View Drop Down
Advanced User
Advanced User


Joined: 18 Feb 2021
Status: Offline
Points: 61 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dramos Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2022 at 11:49pm
Dear Jeff,

Sorry for the late reply, I am writing from Spain.....

The data I used was taken from here

I hope you used the same for analysis.

Thanks and regards.
dramos
