Display 2D & 3D Components With Maximum Body

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   Hi Tom,

Altium displays the components with maximum dimensions of the body created by Library Expert Lite 2015, but Library Expert Lite 2016 and LE Pro 2016 only display nominal dimensions for 2D and 3D Model.

Therefore, is it possible to export the 2D & 3D model with the maximum dimensions of the body using Libray Expert Pro 2016?

Thanks & Regards,
Juan

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
jlara Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 04 Jul 2016 Status: Offline Points: 2	Post Options Post Reply Quote jlara Report Post Thanks(0) Quote Reply Topic: Display 2D & 3D Components With Maximum Body Posted: 04 Jul 2016 at 2:22pm
	Hi Tom, Altium displays the components with maximum dimensions of the body created by Library Expert Lite 2015, but Library Expert Lite 2016 and LE Pro 2016 only display nominal dimensions for 2D and 3D Model. Therefore, is it possible to export the 2D & 3D model with the maximum dimensions of the body using Libray Expert Pro 2016? Thanks & Regards, Juan



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5717	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 04 Jul 2016 at 2:31pm

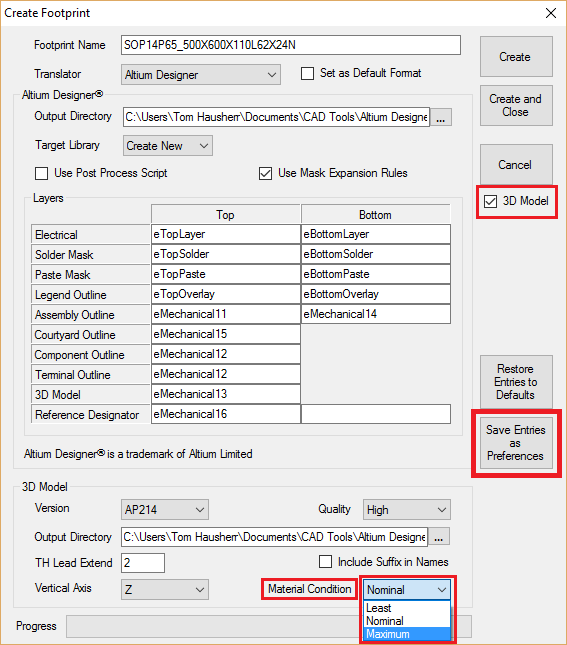

	You can output 3D STEP models in Minimum, Nominal and Maximum material condition. In the Build Part or Library UI in the lower right corner, make your selection and Save As Preference.
