Altium Designer 18 - PCB Pads Are Moved

 Post Reply Post Reply
Author
Message
Jeromeli View Drop Down
Active User
Active User


Joined: 10 Jun 2021
Status: Offline
Points: 12
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jeromeli Quote  Post ReplyReply Direct Link To This Post Topic: Altium Designer 18 - PCB Pads Are Moved
    Posted: 18 Oct 2021 at 2:35am

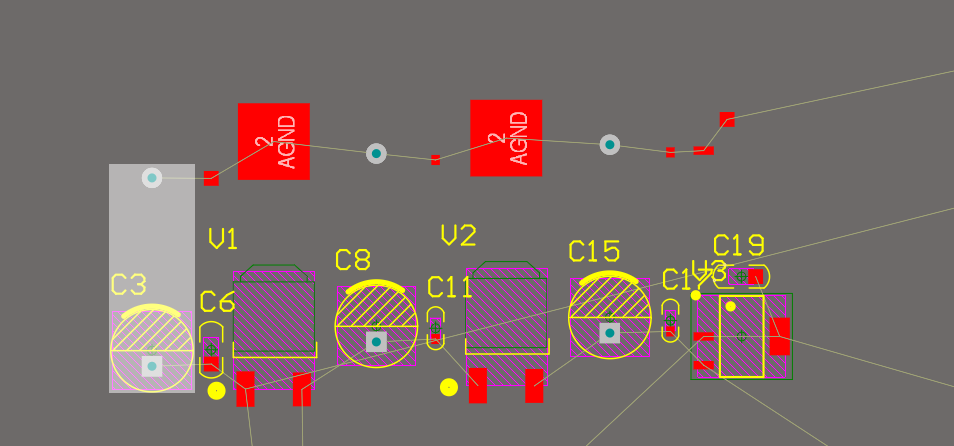

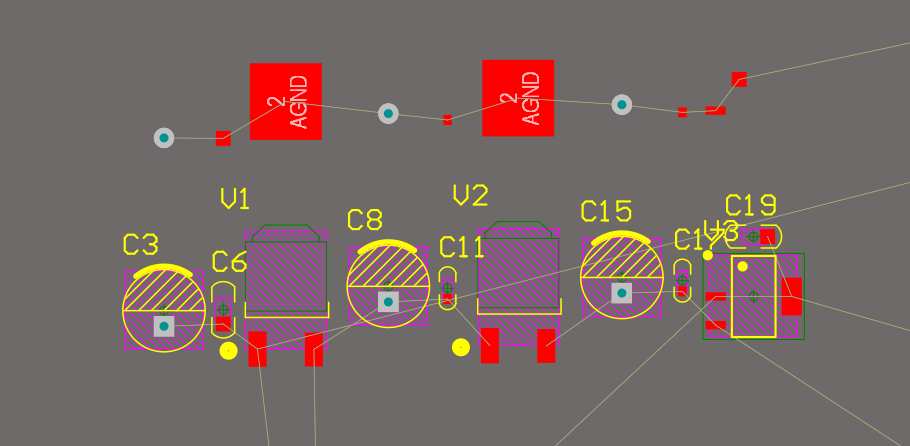

Altium Designer 18: after updating the package in the schematic, to see the package pads which is normal before all moved, the figure is the pads all move up, the selected device is also so become a long one.

Please help me!
